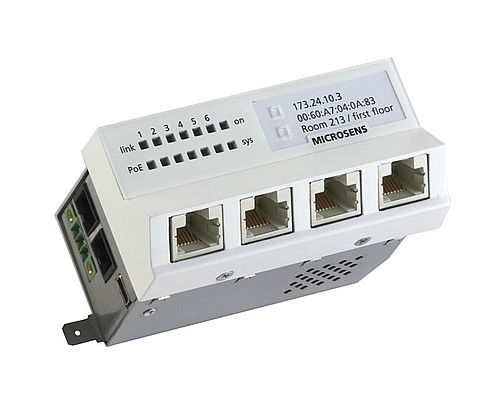

MICROSENS Installation Switch 6 Port GBE, horizon. Installation, 5

Gigabit Ethernet Installation Switch 45x45 horizontal installation, 4x10 / 100 / 1000Base-T with 1x 1000SX uplink and 10/100 / 1000T downlink, 850nm multimode SC, 44..57 VDC power supply terminal, management capability (web / telnet / SNMP / optional NMP-Software) , VLANs, QoS, Security, 5x Power-over-Ethernet + (PSE), 5x RJ-45, 1x SC duplex, 1x 3-pole DC Internal memoryThe MICROSENS 6-Port GbE Micro Switch G6 is an advanced solution designed for flexible and future-oriented networking applications. Offering a variety of configurations, this switch supports both PoE+ and fiber uplink options to meet diverse needs in corporate networks, building installations, and other scenarios. Its compact design ensures easy integration into cable ducts, floor tanks, or surface-mounted enclosures.

With a fanless design, high energy efficiency (IEEE 802.3az), and robust construction, the switch is ideal for reliable and long-term applications. It supports Layer-2+ switching with store-and-forward technology, a maximum switching capacity of 32 Gbps, and up to 8,192 MAC addresses. In the PoE+ version, it delivers up to 30 W per port, making it suitable for powering IP cameras, phones, or other devices.

For optimal network management, the switch offers extensive features such as a web manager, Telnet/SSH, SNMP, and an integrated Linux operating system. Additionally, the support for scripting and swappable microSD cards provides high adaptability and simplified maintenance. The MICROSENS G6 represents Made in Germany quality and undergoes rigorous testing to ensure high reliability.

Technical Details:

General Features:

• Type: Gigabit Ethernet Switch (Layer 2+)
• Switching capacity: 32 Gbps
• Supported protocols: IEEE 802.3, IEEE 802.3az, IEEE 802.3at (PoE+)

Ports:

• Fiber: 1x or 2x SFP uplink (100/1000Base-X), compatible with SC, ST, LC, E-2000
• RJ-45: 4-5x Gigabit Ethernet (10/100/1000Base-T)

PoE+ Features (optional):

• PoE+ standard: IEEE 802.3at (max. 30 W/port)
• Maximum total power: 80 W

Network Management:

• Web management (HTTP/HTTPS)
• SNMP v1/v2c/v3, Telnet, SSH
• Integrated Linux OS with fast boot time
• Supports scripting for routine tasks

Mechanics:

• Dimensions: 90 x 45 x 59.7 mm
• Weight: 325 g
• Mounting: Snap-in, compatible with installation systems

Environmental Conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C

Power Supply:

• Input voltage: 54 V DC (PoE version) or 230 V AC
• Power consumption: Typ. 4.5 W (without PoE)

Certifications:

• CE compliant (EMC and Low Voltage Directive)
• Safety: EN 60950-1:2011-01

Scope of Delivery:

• 1x Micro Switch G6
• 1x Grounding cable
• 1x Power plug
• 1x Quick start guide
• 1x Set of pictogram stickers
