MICROSENS Installation Switch 6 Port GBE, horizon. Installation, 5

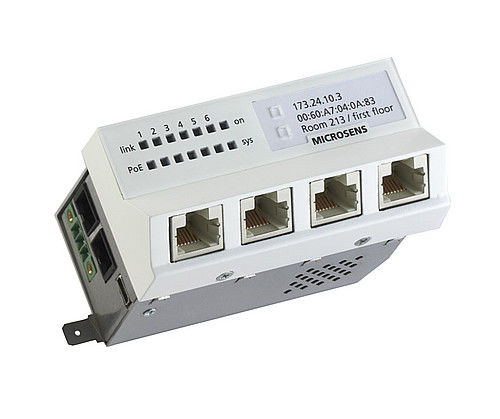

Gigabit Ethernet Installation Switch 45x45 horizontal installation, 4x10 / 100 / 1000T with 1000SX uplink and 10/100 / 1000T downlink, 850nm multimode SC, int. 230 VAC power supply, management capability (web / telnet / SNMP / optional NMP-Software), VLANs, QoS, SecurityThe MICROSENS 6-Port GbE Micro Switch G6 with fiber-optic uplink port(s) and optional PoE+ functionality provides a future-proof and highly flexible solution for modern network environments. As part of the Fiber-To-The-Office (FTTO) concept, the switch is designed with the latest technology, compactness, and reliability in mind. It is particularly suitable for demanding applications, including trunking channels, floor tanks, and custom surface-mounted housings, where space savings and performance are critical.

Thanks to its modular design, the switch is available in various configurations. Variants with one or two fiber-optic uplink ports and with or without PoE+ functionality offer flexibility for integration into existing networks. The PoE+ functionality enables connected devices such as IP phones or cameras to be powered directly, eliminating the need for additional power supplies.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer 2+), IEEE 802.3 compliant

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192 (automatic learning and aging)
• Jumbo frames: up to 10,240 bytes

Ports:

• Uplink:
- 1x or 2x fiber-optic uplink (SFP slots, SC/ST duplex, 1000Base-SX/-LX)
- 1x RJ-45 (1000Base-T)

• Local:
- 4x or 5x RJ-45 ports (10/100/1000Base-T, optionally with PoE+)

PoE+ Functionality (optional):

• IEEE 802.3at (max. 30 W/port)
• Total PoE power: max. 80 W
• External power supply: typ. 54 V DC

Network management:

• Linux-based operating system
• Support for IPv4/IPv6 dual stack
• Web manager (HTTP/HTTPS), Telnet, SSH
• SNMP v1/v2c/v3, CLI scripting for automation
• Support for QoS, VLANs, CDP, RSTP
• Firmware and configuration updates via FTP/SFTP/TFTP

Mounting:

• Snap-in mounting (45 mm)
• Compatible with standard installation systems
• Beveled edge for 2-gang frames

Dimensions & weight:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g

Power supply:

• PoE variant: 44–57 V DC (typ. 54 V)
• Non-PoE variant: 230 V AC (195–265 V)
• Power consumption: typ. 4.5 W (without PoE), max. 80 W (incl. PoE)

Operating conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Reliability:

• MTBF: 100,000 hours (MIL-HDBK-217F)

Key features:

• Supports up to two independent ring topologies
• Optional: microSD card for configuration and firmware management

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Ordering information:

• MS440200PM-48G6+: PoE+ variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207PM-48G6+: PoE+ variant, 2x fiber (SFP), horizontal form factor
• MS440200M-G6+: 230 V variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207M-G6+: 230 V variant, 2x fiber (SFP), horizontal form factor
