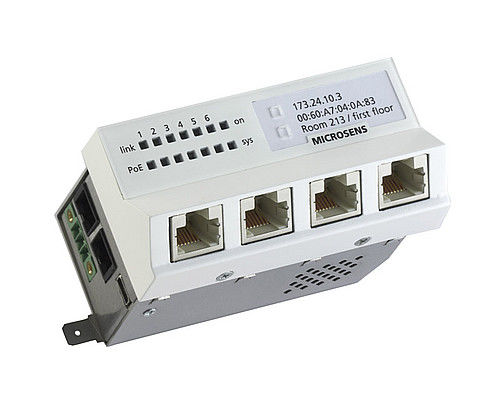

MICROSENS Installation Switch 6 Port GBE, horizon. Installation, 5xRJ45, 1xST duplex, PoE +, MS440200PM-48G6 +

Gigabit Ethernet Installation Switch 45x45 horizontal installation, 4x10 / 100 / 1000Base-T with 1x 1000SX uplink and 10/100 / 1000T downlink, 850nm multimode ST, 44..57 VDC power supply terminal, management capability (web / telnet / SNMP / optional NMP-Software) , VLANs, QoS, Security, 5x Power-over-Ethernet + (PSE), 5x RJ-45, 1x SC duplex, 1x 3-pole DCG6 + series with flash memoryThe MICROSENS 6-Port GbE Micro Switch G6 represents the latest innovation in Fiber-To-The-Office solutions. Using advanced technology, this compact switch delivers a highly flexible and future-oriented platform that is ideal for professional network applications. Designed as a 6-port switch, it offers various configurations to meet diverse customer requirements.

With fiber uplink options (1x or 2x SFP slots) and optional Power-over-Ethernet (PoE+) functionality, the switch provides both performance and flexibility. The Micro Switch G6 is perfect for use in cable ducts, floor tanks, and surface-mounted enclosures. Its fanless design, energy-efficient switching chip, and straightforward installation ensure high efficiency, robustness, and reliability.

The switch supports Layer-2+ store-and-forward technology with a switching capacity of 32 Gbps. A range of network management features, such as a web manager, Telnet/SSH, and SNMP, make it easy to manage and configure. The ability to store configurations and firmware on swappable microSD cards makes it ideal for flexible and demanding environments.

Technical Details:

General Features:

• Type: Gigabit Ethernet Switch (Layer 2+)
• Switching capacity: 32 Gbps
• MAC addresses: 8,192, automatic learning and aging
• Jumbo frames: Up to 10,240 bytes

Ports:

• RJ-45 Ports: 4 or 5x 10/100/1000Base-T, Auto MDI/MDI-X
• Fiber uplink: 1x or 2x SFP slots (100/1000Base-X)

Power-over-Ethernet (PoE+):

• Standard: IEEE 802.3at, max. 30 W/port
• Total power: Max. 80 W (with appropriate installation)

Network Management:

• Supported protocols: SNMP v1/v2c/v3, HTTP/HTTPS, Telnet, SSH
• Operating system: Linux with fast boot time
• Automation: CLI scripts and integrated scripting
• Web manager and central management platform (NMP)

Mechanical Details:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H)
• Weight: 325 g
• Mounting: Snap-in mounting for 45-mm frames

Environmental Conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10 to 90% (non-condensing)

Power Supply:

• DC version: 44–57 V (typ. 54 V), max. 80 W with PoE+
• AC version: 195–265 V (typ. 230 V), 4.5 W consumption without PoE

Scope of Delivery:

• 1x Micro Switch G6
• 1x Grounding cable
• 1x Power plug
• 1x Quick start guide
• 1x Set of pictogram stickers

Certifications:

• CE compliance (EMC and Low Voltage Directives)
• Safety: EN 60950-1
