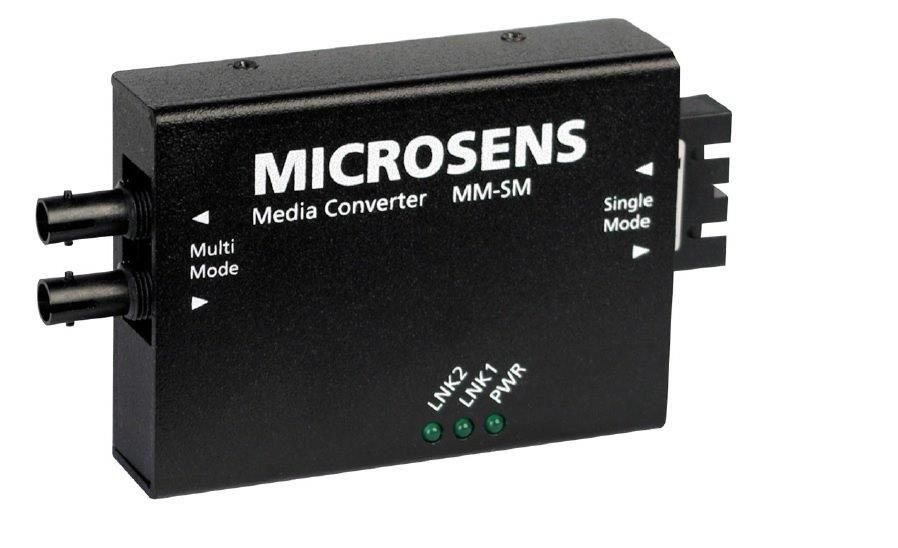

Microsens media converter multimode / monomode up to 155 Mbit/s, protocol transparent, MS410568

Microsens media converter multimode / monomode up to 155 Mbit/s, protocol transparent, MS410568
media converter multimode/monomode transparent max. 155 Mbit/s, incl.
power supply - multimode: ST 850nm, monomode: SC 1310nm 15km
Optimum utilization of the bandwidth through direct transmission. Bidirectional coupling of multimode and single-mode fibers. Compatible with all common protocol versions with adapted optical budget up to 125 km.The MICROSENS protocol-transparent MM/SM converters provide a reliable solution for actively converting multimode to single-mode fiber connections at data rates of up to 1.25 Gbps. These devices support a wide range of protocols and network types, including Ethernet, Fast Ethernet, Gigabit Ethernet, FDDI, ESCON, and STM-1/STM-4. Transparent signal transmission ensures optimal utilization of the fiber's bandwidth without requiring protocol conversion.

The integrated link transparency guarantees seamless network functionality: if a link fails on one side, the link on the other side is automatically disabled. The converters are available in various models tailored to specific data rates and optical parameters. Power is supplied via an external power adapter, which is included in the package.

Technical Specifications:

Device:

• Type: Protocol-transparent Multimode/Singlemode Converter
• Supported Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, FDDI, MADI, ESCON, STM-1, STM-4
• Data Rates:
- Up to 40 Mbps (Model MS410504)
- Up to 155 Mbps (Models MS41056x)
- Up to 1.25 Gbps (Models MS41059x)


Fiber Connection:

• Fiber Types:
- Multimode: 62.5/125 µm or 50/125 µm
- Singlemode: 9/125 µm

• Wavelengths:
- Multimode: 850 nm
- Singlemode: 1310 nm, 1550 nm


Connections:

• Cable Type: Shielded Twisted Pair Cable, 100 Ohm, Category 5e
• LEDs:
- PWR: Power Status
- LNK1: Link Status Fiber Port 1
- LNK2: Link Status Fiber Port 2


Optical Parameters:

• Typical Ranges:
- Multimode:
- 40 Mbps: 2 km
- 155 Mbps: 2 km
- 1.25 Gbps: 550 m
- Singlemode:
- 40 Mbps: 15 km
- 155 Mbps: 15 km
- 1.25 Gbps: 10 km (up to 70 km for special variants)

• Power and Sensitivity:
- Multimode:
- 850 nm: -13 to -19 dBm (Tx power), -26 to -33 dBm (sensitivity)
- Singlemode:
- 1310 nm, 1550 nm: -20 to 0 dBm (Tx power), -24 to -33 dBm (sensitivity)


Environmental Conditions:

• Operating Temperature: 0 °C to 55 °C
• Storage Temperature: -20 °C to 80 °C
• Humidity: 5% to 80%, non-condensing

Mechanical:

• Housing: Powder-coated steel
• Dimensions: 60 x 23 x 83 mm (W x H x D)
• Weight: Approx. 200 g

Power Supply:

• Type: External power adapter (included)
• Input Voltage: 100–240 VAC, 50/60 Hz
• Output Voltage: 5 V DC

Ordering Information:

• Models:
- MS410504: MM 850 nm ST / SM 1310 nm ST, 40 Mbps, 15 km range
- MS410567: MM 1310 nm SC / SM 1310 nm SC, 155 Mbps, 15 km range
- MS410590: MM 850 nm SC / SM 1310 nm SC, 1.25 Gbps, 10 km range
- MS410595: MM 850 nm SC / SM 1550 nm SC, 1.25 Gbps, 70 km range
- Additional models available for varying ranges and interfaces


Package Contents:

• 1x Protocol-transparent MM/SM Converter
• 1x External Power Adapter (5 V DC)
• 1x Quick Start Guide

Further Information:

Detailed technical specifications are available on the MICROSENS website.
