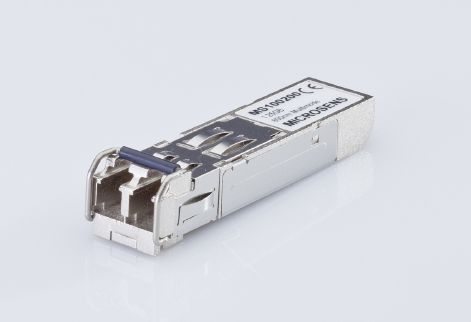

Microsens Mini-GBIC, 10GBE, 10G SONET/SDH, SFP+, MS100702D

The Small Form Factor Pluggable (SFP+) is a state-of-the-art, next-generation interchangeable transceiver module designed for use in compatible active network devices. It is smaller than other currently available form factors and provides outstanding port density per line card. With its form factor, SFP+ is compatible with 10G network slots, allowing for flexible network configuration and scalability to meet future demands.

SFP+ modules support bandwidths of up to 11.1 GBit/s and are optimized for demanding applications such as 10 Gigabit Ethernet, 8 Gigabit Fibre Channel, and STM-64. They can be selected based on cable type (multimode, single-mode, or simplex) and range requirements. Additionally, their hot-swap capability ensures that modules can be replaced or installed during operation without any downtime.

Compliance with standards such as the Multi Source Agreement (MSA) and SFF-8472 ensures standardized construction and optional Digital Diagnostic Monitoring (DDM), enabling precise monitoring of optical connections.

Technical Specifications:

Types and Cable Media:

• Supports multimode and single-mode fibers
• LC-duplex connector for reliable optical connections
• Digital Diagnostic Monitoring (DDM) for monitoring key parameters such as signal strength and temperature
• Compatibility with 10 Gigabit Ethernet and STM-64

Technical Details:

• Bandwidth: 8.5 GBit/s to 11.1 GBit/s
• Range:
- Multimode: 220 m to 300 m
- Single-mode: 10 km to 80 km

• Wavelengths:
- Multimode: TX/RX at 850 nm or 1310 nm
- Single-mode: TX/RX at 1310 nm or 1550 nm

• Operating Temperature:
- Standard models: 0°C to +70°C
- Extended temperature models: -40°C to +85°C

• Power Budget: Between 3.5 dB and 23 dB (depending on model)
• Protocols: 10 Gigabit Ethernet, STM-64
• Laser Types:
- Multimode: VCSEL or FP
- Single-mode: DFB or EML


Safety Information:

Fiber-optic components emit visible and invisible light that can cause irreversible eye damage. To prevent injuries:

• Never look directly into optical ports (risk of blinding).
• Cover unused optical ports with protective caps.
• Activate connections only after all ports are securely connected.

The active laser components comply with Laser Class 1 standards.

Order Information:

Multimode Models:

• MS100700D: SFP+ 10G Transceiver SR, Multimode 850 nm, DDM, LC, range 300 m, operating temperature 0°C to +70°C
• MS100700DX: With extended temperature range (-40°C to +85°C)
• MS100701D: SFP+ 10G Transceiver LRM, Multimode 1310 nm, DDM, LC, range 220 m

Single-Mode Models:

• MS100702D: SFP+ 10G Transceiver LR, Single-mode 1310 nm, DDM, LC, range 10 km
• MS100702DX: With extended temperature range (-40°C to +85°C)
• MS100704D: SFP+ 10G Transceiver ER, Single-mode 1550 nm, DDM, LC, range 40 km
• MS100706D: SFP+ 10G Transceiver ZR, Single-mode 1550 nm, DDM, LC, range 80 km

SFP+ modules are the ideal solution for high-performance networks that require reliability and flexibility.
