Miboxer PLCZ1 LED PLC Series PLC Lighting Master Controller Zigbee 3.0 + 2.4G content_copy

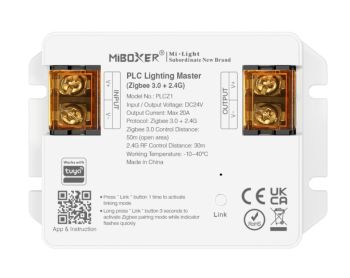

The Miboxer PLCZ1 is a PLC lighting control master for LED lighting systems, operating via Zigbee 3.0 and 2.4-GHz wireless technology. It serves as a central control unit for intelligent lighting solutions and enables remote control of LED luminaires with RGB-CCT functions. The device is designed for indoor use, as it has an IP20 protection rating, which offers no protection against water or dust. It operates on a direct voltage of 24 volts and can deliver a maximum output power of 480 watts (equivalent to 20 amperes). The operating temperature ranges from -10 to +40 degrees Celsius, allowing use under normal indoor conditions. The enclosure is made of plastic, has a rectangular shape, and is finished in white color. Dimensions are 97 × 67 × 24 mm.

Applications
The PLCZ1 is primarily intended for controlling LED lighting systems indoors, especially in applications such as residential and commercial space lighting, where flexible and intelligent lighting control is required. It is not suitable for outdoor use or in wet environments, as it is not waterproof. Control is performed via the TUYA SMART APP interface, requiring a Zigbee 3.0 gateway. The app enables brightness adjustment, creation of lighting scenes, timer functions, music rhythm control, biological rhythm functions, and a sleep mode. Additionally, the controller supports control via 2.4-GHz wireless remote controls, with up to 12 remotes pairable per controller.

Functions and Features in Detail
The PLCZ1 offers RGB-CCT control, allowing selection from 16 million colors. Brightness is dimmable, with dimming performed via the PLC protocol. The controller includes 18 integrated dynamic lighting modes, controllable via the 2.4-GHz remote control. These modes include, for example, jumping color changes or gradual color transitions. The Auto-Forwarding function allows the control signal to be automatically forwarded to another controller, theoretically extending the remote control range indefinitely. Automatic Synchronization ensures all connected luminaires display the same lighting mode simultaneously, which is important for consistent lighting in larger rooms. Additionally, the controller features a DND function (Do Not Disturb), which can be used in areas with power outages to save energy.

Technology Explained Simply
The PLCZ1 uses a combination of Zigbee 3.0 and 2.4-GHz RF technology for wireless communication. Zigbee 3.0 enables a control range of up to 50 meters in open areas, while 2.4-GHz wireless technology offers a range of 30 meters. Control is performed via the WLAN standard protocol IEEE 802.11b/g/n in the 2.4-GHz band. Communication with the TUYA SMART App requires a gateway that establishes the connection between the controller and the smartphone. Control via third-party voice assistant systems such as Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu, and Xiaomi is also possible, but only with a Zigbee 3.0 gateway. Safety and EMC standards comply with EN 61347-1:2015+A1:2021, EN 61347-2-11:2001+A1:2019, ETSI EN 301 489-1 v 2.2.3 (2019-11), ETSI EN 301 489-3 v 2.3.2 (2023-01), and ETSI EN 300 440 V2.2.1. Certification is granted under CE, EMC, and RED.

Compatibility and Accessories
The PLCZ1 is compatible with various LED luminaires from the PLC series, including underwater lights such as PLC-UW1, PLC-RD3, PLC-RD2, and PLC-RD1, as well as wall-mounted pool lights like PLC-WP3, PLC-WP2, PLC-WP1, and the PAR56 pool light PLC-PA1. Control is performed via the PLCZ1 Master Controller, which functions as the central control unit. Additionally, the PLCW1 LED PLC Series PLC Lighting Master Controller WiFi + 2.4G is available as an alternative control device, but it is not directly compatible with the PLCZ1, as it uses a different protocol. Remote controls and luminaires must be specifically designed for the PLC series to function with the PLCZ1.

Installation and Mounting
Installation of the PLCZ1 must take place in a closed, dry indoor environment, as the IP20 protection rating does not offer protection against water or dust. Wiring is done via a simple circuit designed for 24 V DC supply. Connection cables are not included in the delivery. Mounting should be done at a suitable location that allows access to the control, such as in an electrical enclosure or on a wall. Connection to the LED luminaires is made via appropriate connection cables, which must be purchased separately.

Operational Advantages
The PLCZ1 offers flexible and centralized control of LED lighting systems with a wide range of lighting modes and scenarios. The combination of Zigbee 3.0 and 2.4-GHz wireless technology enables reliable and extensive control. Integration into smart home systems via the TUYA SMART App and voice control expands functionality. Automatic synchronization and auto-forwarding ensure consistent and extensive control. The DND function provides additional energy savings in areas with power outages. The maximum output power of 480 watts allows simultaneous control of multiple luminaires.

Note: Scope of Delivery
The delivery scope of the PLCZ1 includes only the control unit. Accessories such as remote controls, connection cables, power supply, or other components are not included and must be purchased separately.
