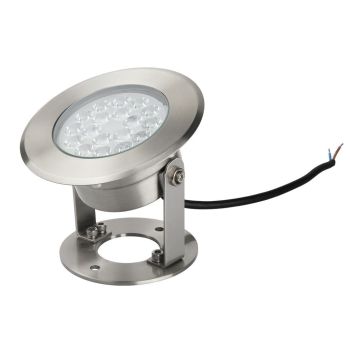

Miboxer PLC-UW1 LED PLC-series underwater light 9W RGB+CCT content_copy

The PLC-UW1 is an LED underwater spotlight from the brand Miboxer, specifically designed for use in swimming pools, ponds, or other water-filled installations. The device features RGB+CCT lighting and is operated via a PLC control system, enabling simple wiring. It works with a master controller that can dim brightness, create scenes, set timers, synchronize with music rhythm, adjust biological rhythms, and activate sleep modes. Additionally, the device supports a 2.4-GHz remote control. The product is designed for continuous underwater use and offers high light quality with a Color Rendering Index (CRI) of over 80.

Applications

The PLC-UW1 is intended for use in underwater installations such as swimming pools, garden ponds, or decorative water features. The IP68 protection rating ensures complete dust and water tightness, allowing the device to be safely operated even under continuous underwater stress. The operating temperature range extends from -10 °C to 40 °C, enabling use in various climatic conditions.

Functions and Features in Detail

The device offers a selection of 16 million colors and allows individual adjustment of RGB, CCT (cool white to warm white, 2700K to 6500K), brightness, and saturation. The color temperature can be continuously adjusted between 2700K (warm white) and 6500K (cool white). Brightness is dimmable, enabling flexible lighting design. Control is performed via a master controller that supports various lighting scenes and effects such as music rhythm or sleep mode.

Technology Explained Simply

The PLC-UW1 operates on a DC24V power supply and consumes a total of 9W. Power is distributed as 3W per color channel (Red, Green, Blue) and 7W for cool white (CW) and 7W for warm white (WW) light. The luminous flux is 610 lumens with a luminous efficacy of 95 lumens per watt, representing efficient lighting. The beam angle of 15° provides a focused light cone that can be used precisely. The IP68 protection rating means the device is dust-tight and protected against continuous underwater exposure, which is essential for use in water installations.

Compatibility and Accessories

The device is designed for use with a master controller that manages lighting functions. It supports a 2.4-GHz remote control, offering additional control options. Control is performed via WLAN according to the IEEE 802.11b/g/n standard in the 2.4-GHz band. Certifications CE, EMC, LVD, and RED confirm compliance with European safety and electromagnetic compatibility regulations.

Installation and Mounting

Installation is carried out using a simple wiring diagram designed for connection to the master controller. The enclosure is made of stainless steel 304, ensuring high corrosion resistance and long service life. Mounting is done directly in the water, with the IP68 protection rating enabling safe underwater operation.

Operational Advantages

The PLC-UW1 offers high flexibility in lighting design through the combination of RGB and CCT functions. The dimmable brightness and the ability to program scenes and timers expand application possibilities. High luminous efficacy and low energy consumption ensure efficient use. The robust construction from stainless steel 304 and the IP68 protection rating guarantee a long service life even under harsh conditions in water.
