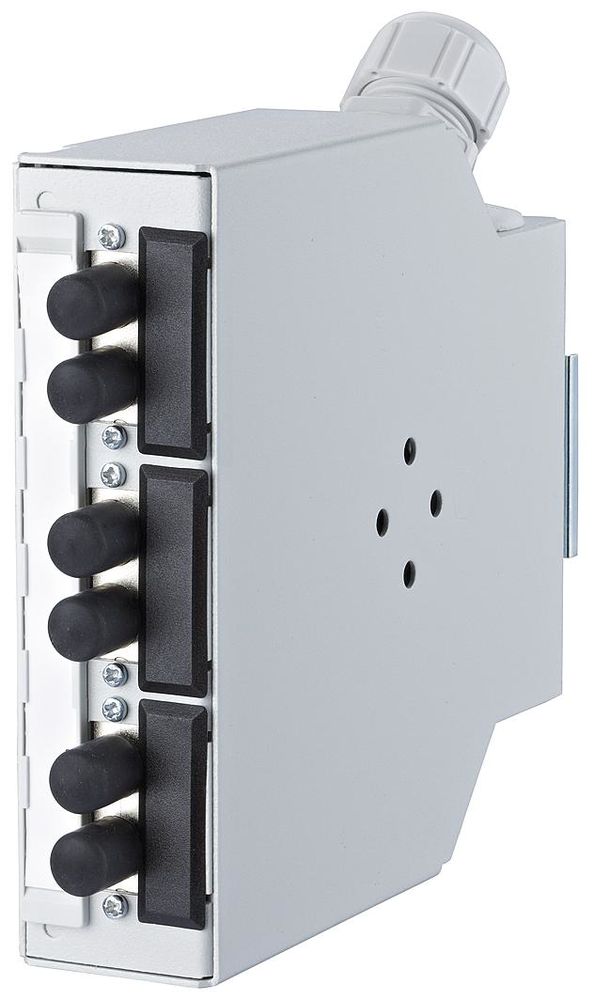

Metz Connect 150240C30310E BTR OpDAT REGplus 3xSC/ ST-D MM Ph-Br M20 splice ver. Crimp sp. content_copy

Splice distributor for mounting rail TH35, equipped with SC-D/ST-D (MM) couplings made of zinc die-cast, guide sleeve made of ceramic slotted for multimode applications, with fiber reservoir, freely labelable labeling strip, various installation variants on the mounting rail possible, splice tray with crimp splice holder, front panel can be removed as a whole, cable feed from above or below, straight or diagonal, with M20 screw connection (up to 2 possible), introduction of pre-assembled cables possible, one M20 cable entry with strain relief included in delivery, fastening of the housing cover with only one captive screw, free coupling recesses equipped with special blind covers, variants: equipped with 2, 3, 4 or 6 SC-D/ST-D couplings (SC-D inside, ST-D outside), Attention: When using pre-assembled cables with ST connectors, the unassembled variant of the OpDAT REGplus can be used. The ST-D couplings required are available as accessories. Before installing the couplings in the housing, the pre-assembled ST plugs must be plugged onto the couplings for reasons of space.
