Metz Connect 1401015000ME-Single BTR 1401015000ME Industry IP67 V1 metal plug housing, bayonet locking

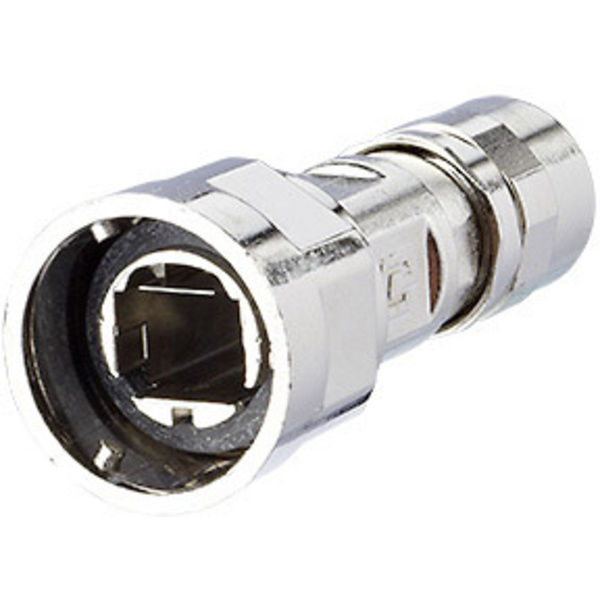

The Metz Connect Industry IP67 V1 1401015000ME silver plug housing is a robust RJ45 connector specifically designed for industrial applications in harsh environments. It features high chemical resistance and is equipped with a bayonet locking mechanism that ensures a secure and quick connection. The housing is made from high-quality die-cast zinc with a silver finish and is RoHS-compliant. It can operate within a temperature range of -40 °C to +70 °C, making it ideal for demanding conditions.

This plug housing meets the ISO/IEC 24702 and IEC 61076-3-106 Variant 1 standards and offers a high IP67 protection rating, which guarantees dust-tightness and protection against temporary immersion in water. With a maximum cable sheath diameter of up to 10 mm, it is suitable for various industrial cabling applications.

The robust metal housing not only provides excellent resistance to mechanical stress but also protects against welding sparks. It complies with the UL 94V-0 flammability rating and offers resistance to many chemicals, making it a durable and safe choice for industrial environments. The housing also features a labeling option to facilitate identification of connectors and includes a snap-on clip for color coding. The cable can be passed through the pre-assembled housing, simplifying installation.

This housing is compatible with various Industry plug inserts, including the E-DAT Industry RJ45 Field Plug Insert, E-DAT Industry RJ45 Plug Insert, as well as the OpDAT Industry 2LC and 2SC Plug Inserts. It is available in both versions with and without bend protection.

Technical data:

• Product: BTR 1401015000ME Industry IP67 V1 Metal Plug Housing
• Locking mechanism: Bayonet lock according to ISO/IEC 24702 and IEC 61076-3-106 Var. 1
• Protection class: IP67 (dustproof, waterproof against temporary immersion)
• Cable diameter: up to 10 mm
• Housing material: Die-cast zinc
• Surface: Silver
• Flammability rating: UL 94V-0
• Chemical resistance: available
• Welding spark resistance: available
• Labeling option: yes
• Color coding: snap-on clip
• Cable feed-through: possible with pre-assembled housing
• Compatible plug inserts: E-DAT Industry RJ45 Field Plug Insert, E-DAT Industry RJ45 Plug Insert, OpDAT Industry 2LC Plug Insert, OpDAT Industry 2SC Plug Insert

Type: 1401015000ME
Features: Chemical resistance
Temperature range: -40 °C to +70 °C
Max temperature: +70 °C
Locking mechanism: Bayonet
Min temperature: -40 °C
Category: RJ45 connector
Material: Die-cast zinc
Quantity: 1 pc.
Color: Grey
Manufacturer color: Silver
Connector standard: RJ45
Product type: RJ45 connector
Design: Plug housing
