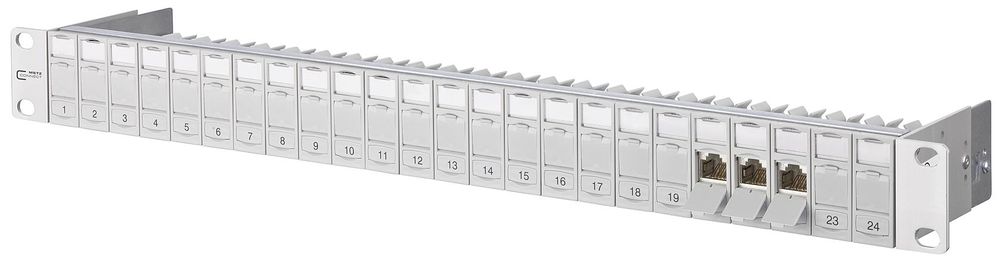

Metz Connect 130920-E BTR- Cat.6 Patch Panel 19-inch, E-DAT module 24x8 (8) light gray 1U 24 port
|
198,00 EUR 198,00 EUR |
|
|
( 235,61 EUR incl. VAT ) ≈ £169.48 | ≈ $228.68 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 498258 |
|---|---|
| Mfg Part No: | 130920-E |
| UPC/EAN: | 4250184106135 |
| Weight: | 1.4 kg |
Further Patch Panels from Metz ConnectFurther products in category Patch Panels
All products of Metz Connect
Product information for Metz Connect 130920-E:
E-DAT modul system
Patch Panels
- Module frame front made of silver anodized aluminum
- Module housing made of die-cast zinc refined,
- Installation-friendly connection of 2 - to 4 pair data lines to BTR IDC terminals (AWG 22 - 24) with wire color identification to TIA / EIA 568A
- Wiring according to ISO / IEC 11801 50173-1. The pairs can be performed without untwisting the pairs to the terminal
- Strain relief by cable ties at E-DAT modul
- Strain relief at the patch panel by cable ties
- Contact spring for cable shield captive
- Inspection window for port identification, labels included enclosed
- Label sheets 210 x 297 mm see accessories
- Ground post M6 x 10 with nut and lock washer
- Incl 30 inch ground wire
- All fully shielded modules are interconnected by ground bus
- Cat.6 / Class E Link Performance to ISO / IEC 11801: 9/2002 and EN50173-1: 2002
- EMC-safe according to EN 55022 B, EN 50082-1
E-DAT modul 24 x 8
Cat. 6 patch panel
- 48,3 cm ( 19 inch ) 1U Cat.6 patch panel consisting of 24 individually RJ45 modules - E-DAT modul 8 (8)
- Ground post M6 x 10 with nut and lock washer
- All fully shielded modules are interconnected by ground bus
- Standard color of the module carrier and dust cover: RAL 7035 light gray
Model: Weight 1100 g
Type: 130920-E
Quantity: 1 unit.
Type: 130920-E
Patch Panels
- Module frame front made of silver anodized aluminum
- Module housing made of die-cast zinc refined,
- Installation-friendly connection of 2 - to 4 pair data lines to BTR IDC terminals (AWG 22 - 24) with wire color identification to TIA / EIA 568A
- Wiring according to ISO / IEC 11801 50173-1. The pairs can be performed without untwisting the pairs to the terminal
- Strain relief by cable ties at E-DAT modul
- Strain relief at the patch panel by cable ties
- Contact spring for cable shield captive
- Inspection window for port identification, labels included enclosed
- Label sheets 210 x 297 mm see accessories
- Ground post M6 x 10 with nut and lock washer
- Incl 30 inch ground wire
- All fully shielded modules are interconnected by ground bus
- Cat.6 / Class E Link Performance to ISO / IEC 11801: 9/2002 and EN50173-1: 2002
- EMC-safe according to EN 55022 B, EN 50082-1
E-DAT modul 24 x 8
Cat. 6 patch panel
- 48,3 cm ( 19 inch ) 1U Cat.6 patch panel consisting of 24 individually RJ45 modules - E-DAT modul 8 (8)
- Ground post M6 x 10 with nut and lock washer
- All fully shielded modules are interconnected by ground bus
- Standard color of the module carrier and dust cover: RAL 7035 light gray
Model: Weight 1100 g
Type: 130920-E
Quantity: 1 unit.
Type: 130920-E
