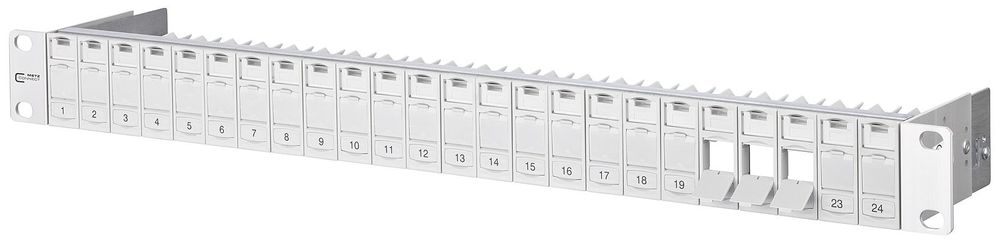

Metz Connect 130920-00-E BTR -module support, E-DAT 1U 19 inch light gray
|
51,18 EUR |
|||||||||||
|
( 60,90 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 137647 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 130920-00-E | ||||||||||
| UPC/EAN: | 4250184106111 | ||||||||||
| Weight: | 0.25 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Metz Connect 130920-00-E:
Patch Panels
- Module frame front made ​​of silver anodized aluminum
- Module housing made ​​of die-cast zinc, finished
- installation-friendly connection of 2 - to 4 pair data lines to BTR IDC terminals (AWG 22 - 24) with wire color identification to TIA / EIA 568A
- wiring in accordance with ISO / IEC 11801 / EN 50173-1. The pairs can be performed without untwisting the pairs to the terminal
- strain relief by cable ties at E-DAT modul
- Additional strain relief on the patch panel by cable ties
- contact spring for cable shield captive
- windows for port identification, labels included enclosed
- label sheet 210 x 297 mm see accessories
- ground post M6 x 10 with nut and lock washer
- incl 30 inch ground wire
- all fully shielded modules are connected by grounding bar
- Cat.6 / Class E Link Performance to ISO / IEC 11801: 9/2002 and EN50173-1: 2002
- EMC safely EN 55022 B, EN 50082-1 ​​E-DAT modul 48,3 cm ( 19 inch ) 1U module support for E-DAT module, light gray - With the E-DAT modul 19lu module carrier with ground bar and the E-DAT module Cat.6 modules 8 (8) Patch panels can be built with up to 24 RJ45 ports Model: Weight 250 g Type: 130920-00 e-
Quantity: 1 unit.
