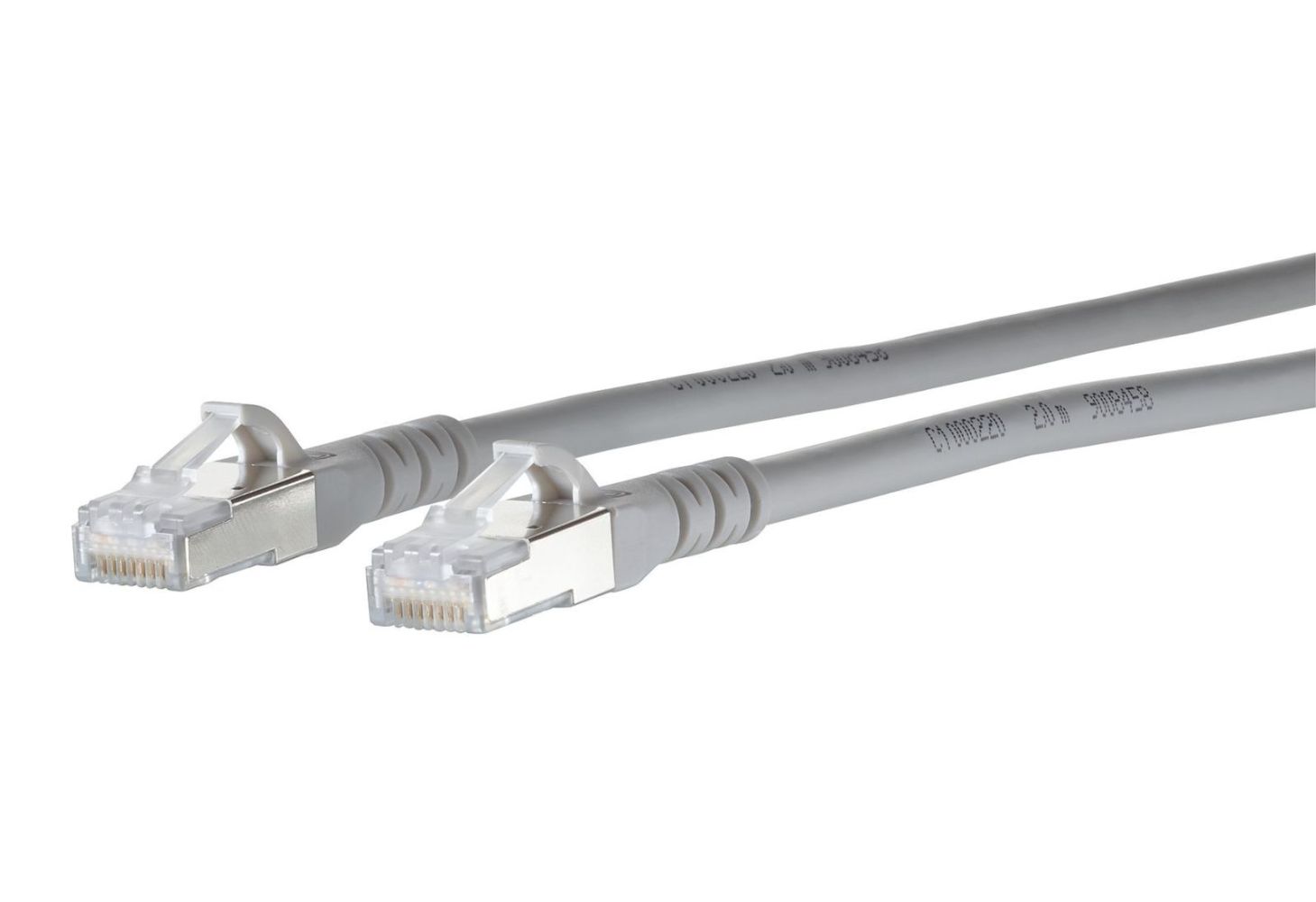

Metz Connect 1308450233-E patch cable 0.2 m grey Cat.6A AWG26 content_copy

The Metz Connect patch cable type 1308450233-E is a fully shielded RJ45 data cable of category 6A, designed for use in bandwidth-intensive networks. It serves for secure connection of network components and enables transmission of voice, data, audio/video, as well as PoE signals. The cable is GHMT PVP certified and is particularly suitable for unshielded and shielded Class E, A systems. It features two shielded RJ45 connectors with wiring 1-1, is LaBS-free and halogen-free, which increases safety during use.

Applications
This patch cable is designed for use in professional network infrastructures, particularly in environments requiring high data rates and reliable signal transmission. It is suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE), as well as HDBaseT applications. Use in outdoor environments is not explicitly mentioned due to the protection rating, however, the full shielding and material quality make it suitable for use in enclosed rooms and environments with electromagnetic interference.

Functions and Equipment in Detail
The cable features an AWG 26/7 stranding, ensuring high conductivity and low signal loss. The strain relief boot is molded and includes an integrated latch protection, reducing mechanical stress on the connectors and enabling a longer service life. The identical width of the strain relief boot and the RJ45 connector ensures a uniform and stable connection. The color of the displayed item is gray, with additional color variants available such as black, white, red, blue, yellow, green, orange-black, violet-black, and purple-black.

Technology Explained Simply
Full shielding (fully shielded cable) protects data transmission from electromagnetic interference, which is especially important in environments with high electromagnetic compatibility (EMC) traffic. Wiring 1-1 means that the conductors are connected identically at both ends, which is required for most network connections. Certification according to GHMT PVP guarantees compliance with quality standards and product reliability. AWG 26/7 stranding refers to the conductor diameter (26 AWG) and the number of wires per conductor (7), providing good conductivity and mechanical stability.

Compatibility and Accessories
The patch cable is compatible with 10 GBit Ethernet (IEEE 802.3an), PoE, PoE plus, UPoE, and HDBaseT. It can be used in unshielded and shielded Class E, A systems. Use in combination with other network components supporting these standards is possible.

Installation and Mounting
Installation is performed by simply inserting the RJ45 connectors into the corresponding sockets of the network components. The strain relief boot and integrated latch protection facilitate installation and increase mechanical stability. The packaging unit includes a single cable in a poly bag (130845xxyy-E) or ten pieces in a poly bag (130845xxyy-Z). The exact length of the displayed item is 0.2 meters.

Operational Advantages
The full shielding and GHMT PVP certification ensure reliable and interference-free data transmission. Support for PoE and HDBaseT expands application possibilities, especially in systems transmitting power and data over the network cable. The LaBS-free and halogen-free design increases safety during use, particularly in enclosed rooms. The robust construction with strain relief boot and latch protection extends the cable's service life and reduces maintenance costs.

General
Cable type	Fully shielded patch cable
Category	Cat.6A
Connector type	RJ45
Shielding	Fully shielded
Certification	GHMT PVP
Twisting	AWG 26/7
Circuitry	1-1
Colour	Grey
Compatibility	10 GBit Ethernet, PoE, PoE plus, UPoE, HDBaseT
Material	LaBS-free, halogen-free
Bend protection	Moulded with integrated latch protection

---
