Metz Connect 1308427B34143
BTR GC1300 pro22 2x4P D:500m
|
-36% 1.424,97 EUR 2.235,36 EUR |
|||||||||||
|
incl. 291,42 EUR copper surcharge ( 1.695,71 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 1441039 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1308427B34143 | ||||||||||
| UPC/EAN: | 4251394604008 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

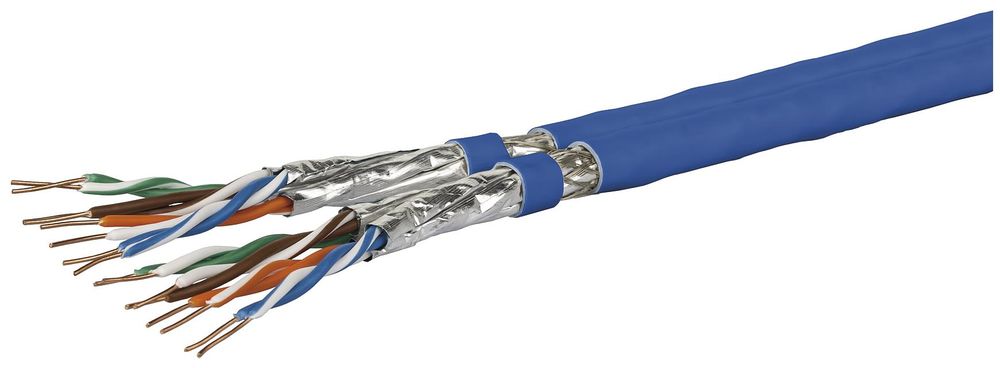

Product information for Metz Connect 1308427B34143:
dual data copper installation cable for use in primary,
secondary and tertiary areas in structured
building cabling according to EN 50173-1: 2011-09, EN 50288-9-1,
ISO/IEC 11801 Ed.2.2:2011-06 and IEC 61156-5. Suitable for
25GBASE-T data rates in the channel link according to DTR-11801-9905 with
channel link lengths up to 50m. Cu wire insulated with foam skin
polyethylene, stranding 2 cores to the pair, 4 pairs (PiMF) to the
core, pair shielding plastic composite film, aluminum coated,
tinned Cu braid, protective jacket LSHF-FR (FRNC-FR) = Low Smoke Halogen
Free Flame Retardant, flame retardant according to IEC60332-1, IEC60754-2,
IEC 61034 and IEC 60332-3-24.
Fire protection class D[ca] s2 d2 a1 according to EN 50399 (classification
according to EN 13501-6)
Conductor diameter: 0.62 mm (AWG22)
Conductor insulation diameter: 1.5 mm
Cable outer diameter: 7.5 mm / 15.1 mm
Fire load: 1350 MJ/ km
Coupling resistance: less than or equal to 5 milliohm/m at 10 MHz
Coupling attenuation: greater than or equal to 85 dB
Color: blue
Delivery unit: 500 meters
Electrical data nominal at 1200 MHz
Attenuation: 59 dB
NEXT: 83 dB
PS-NEXT: 80 dB
ACR: 24 dB
PS -ACR: 21 dB
ELFEXT: 35 dB
PS-ELFEXT: 32 dB
Return Loss: 17 dB
Sales Unit: 500 MTR
Type: 1308427B34143
The item price shown refers to 500 meters Metz Connect 1308427B34143
Questions & answers
What is the delivery time of Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m?
The article Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metz Connect 1308427B34143 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m always at the best possible price. We can give you a discount of 2% on Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 meters of Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m we can offer you a price of 1.407,97 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Metz Connect 1308427B34143 BTR GC1300 pro22 2x4P D:500m is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
