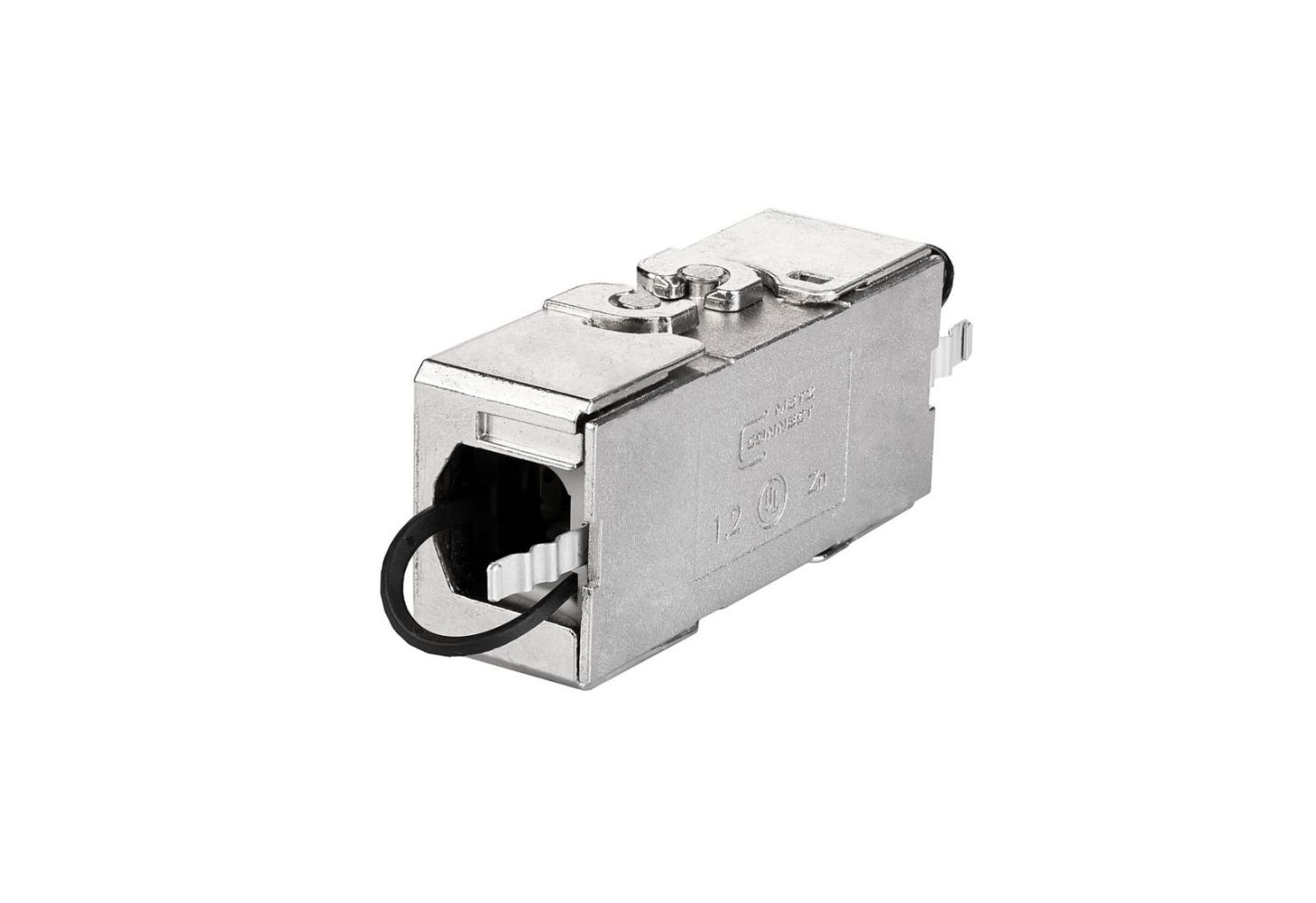

METZ CONNECT BTR Cable Connector Class EA Cat.6A 180 content_copy

Field-assembly cable connector class E, A for 8-core cables (optionally also for 4-core cables)Cable outlet continuous 180°, for the connection/extension/repair/relocation of Cu data cables up to Cat.7, A in conjunction with Cat. 6, A or higher Cu cables, class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173 is met. Suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE), HDBaseT, SAT-IP and AVoverIP, compact design, length 46.6 mm x width 14.7 mm x height 22.6 mm, robust, one-piece and reusable housing made of die-cast zinc, refined, extremely easy to assemble - installation without special tools, strain relief via locking clip directly on the charging piece, intelligent cable management in the charging piece, also suitable for heavily twisted cables, shield connection and strain relief, marking of the wire assignment T568A and T568B directly on the charging piece, simple extension or relocation of existing infrastructure C6, A module by re- or Reusable charging piece assembly-friendly connection of data cables AWG 26/1 to 22/1 (single-wire) and AWG 26/7 to 22/7 (multi-wire) to IDC insulation displacement terminals, conductor diameter solid wire 0.409 to 0.643 mm, conductor diameter stranded wire 0.483 to 0.762 mm, suitable for cable sheath diameters from 5.5 to 10 mm, fully shielded design in accordance with DIN EN 50173
Type: 130863-04-E
