Metz Connect 1308427B34142
BTR GC1300 pro22 4P T:1000m
|
1.494,27 EUR |
|||||||||||
|
incl. 291,42 EUR copper surcharge ( 1.778,18 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 1000 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 1441040 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1308427B34142 | ||||||||||
| UPC/EAN: | 4251394603995 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

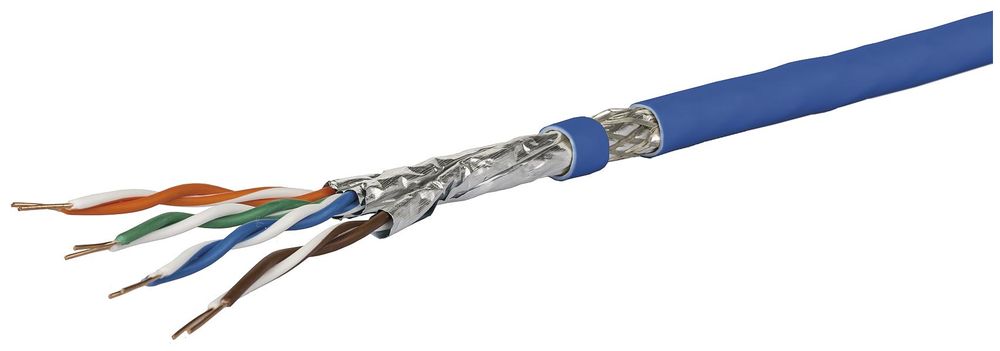

Product information for Metz Connect 1308427B34142:
data copper installation cable for use in primary,
secondary and tertiary areas in structured
building cabling according to EN 50173-1:2011-09, EN 50288-9-1,
ISO/IEC 11801 Ed.2.2:2011-06 and IEC 61156-5. Suitable for
25GBASE-T data rates in the channel link according to DTR-11801-9905 with
channel link lengths up to 50m. Cu wire insulated with foam skin
polyethylene, stranding 2 cores to the pair, 4 pairs (PiMF) to the
core, pair shielding plastic composite film, aluminum coated,
tinned Cu braid, protective jacket LSHF-FR (FRNC-FR) = Low Smoke Halogen
Free Flame Retardant, flame retardant according to IEC60332-1, IEC60754-2,
IEC 61034 and IEC 60332-3-24.
Fire protection class D[ca] s2 d2 a1 according to EN 50399 (classification
according to EN 13501-6)
Conductor diameter: 0.62 mm (AWG22)
Conductor insulation diameter: 1.5 mm
Cable outer diameter: 7.5 mm
Fire load: 660 MJ/km
Coupling resistance: less than or equal to 5 milliohm/m at 10 MHz
Coupling loss: greater than or equal to 85 dB
Color: blue
Delivery unit: 1000 m
Electrical data nominal at 1200 MHz
Attenuation: 59 dB
NEXT: 83 dB
PS-NEXT: 80 dB
ACR: 24 dB
PS-ACR: 21 dB
ELFEXT: 35 dB
PS-ELFEXT: 32 dB
Return Loss: 17 dB
Sales unit: 1000 MTR
Type: 1308427B34142
The item price shown refers to 1000 meters Metz Connect 1308427B34142
