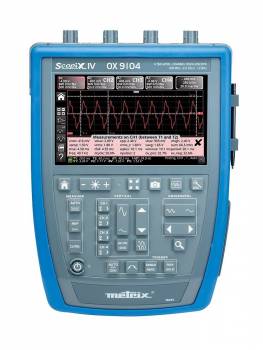

Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz
|
5.379,12 EUR |
|||||||||||
|
( 6.401,15 EUR incl. VAT ) ≈ £4,529.22 | ≈ $6,040.75 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927978 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | OX9104 | ||||||||||
| UPC/EAN: | 3663653000215 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Metrix OX9104:
Highlights:
• Modern, portable oscilloscope with 4 isolated channels and 100 MHz bandwidth
• 4-in-1 device: Oscilloscope, multimeter, harmonic analyzer, recorder
• High safety: Channels isolated from each other and ground
• Large color touchscreen with optimized keypad for user comfort
• Versatile oscilloscope functions: complex triggering, automatic measurements, MATH, FFT, etc.
• Advanced communication interfaces: Ethernet, WiFi, USB
• ScopeNet software for data transfer and PC analysis
Description:
Strengths:
Works as an oscilloscope, multimeter, analyzer, and recorder, displaying stored data directly on-screen. Ensures safety with fully isolated channels, 6 V CAT III, and PROBIX accessories.
The OX 9104 is a portable, standalone digital oscilloscope from the SCOPIX IV series, featuring 4 isolated channels up to 600 V and a 100 MHz bandwidth. Each channel has a memory depth of 100 KPoints for extensive signal recording.
User Comfort:
A 7″ WVGA TFT color touchscreen provides excellent readability. Menus available in 13 languages and an ergonomic keypad enhance user experience.Features:
Advanced triggering functions and 20 automatic measurements per channel facilitate thorough signal analysis. The 12-bit A/D converters offer high vertical resolution. Real-time FFT analysis and advanced MATH functions support detailed diagnostics.The multimeter mode supports TRMS measurements up to 200 kHz, 8000 digits, and features a recorder mode for graphical signal recordings with timestamps.
The harmonic analyzer identifies harmonics up to the 63rd rank for comprehensive signal quality checks.
Technical Details:
• 25 direct command buttons• Sampling rate: 2.5 GS/s (SingleShot) up to 100 GS/s (ETS)
• Battery life: up to 8 hours; fast recharge in 2 hours
• Connectivity: Ethernet, WiFi, USB, µSD
• Storage: µSD card (>32 GB) + internal storage (2 GB)
• PROBIX accessories for easy configuration
• Complete set includes a carrying case and accessories
Included Items:
• OX 9104 oscilloscope• Carrying case
• PROBIX accessories
Questions & answers
What is the delivery time of Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz?
The article Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Metrix OX9104 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz always at the best possible price. We can give you a discount of 2% on Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Metrix OX9104 OX 9104 Portable oscilloscope 4 x 100 MHz we can offer you a price of 5.338,78 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
