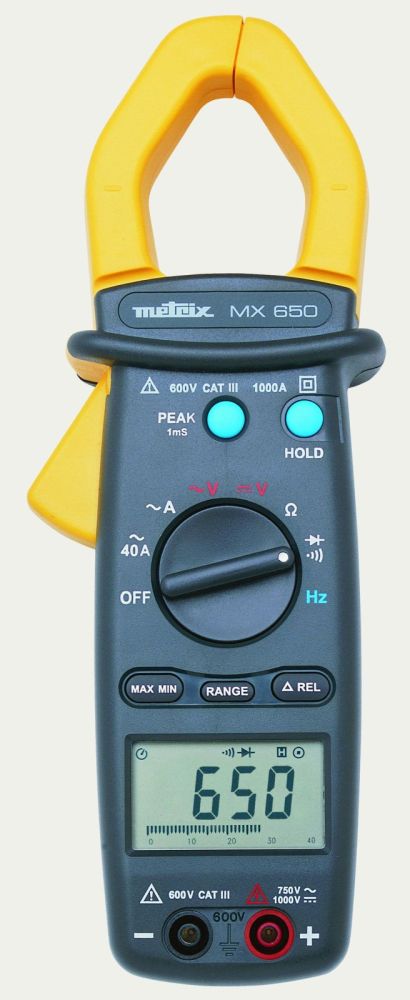

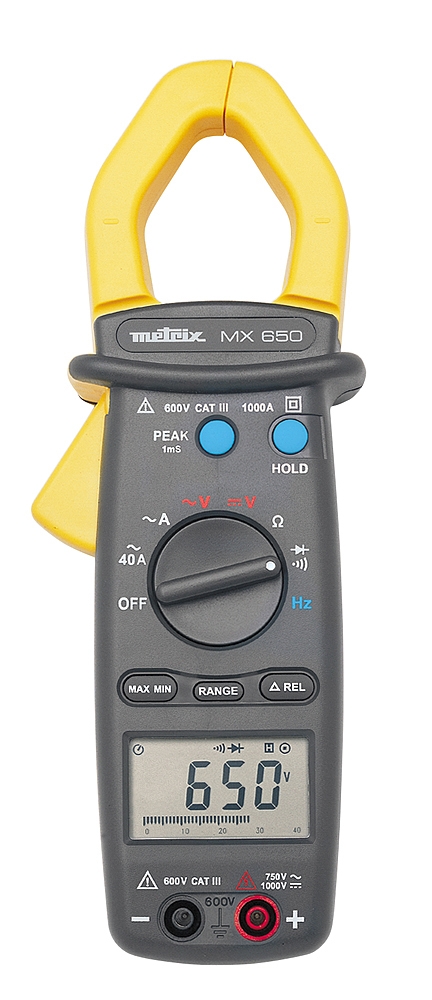

Metrix MX0650-Z MX 650 multi-function clamp
|
304,78 EUR |
|||||||||||
|
( 362,69 EUR incl. VAT ) ≈ £254.19 | ≈ $340.44 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 329956 | ||||||||||
| Mfg Part No: | MX0650-Z | ||||||||||
| UPC/EAN: | 3760171415917 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Metrix MX0650-Z:
Description
The MX 650 clamp combines the functions of an AC/DC multimeter and an AC current clamp up to 1,000 A.
It is extremely easy to grip with a highly readable display.
Specifications:
4,000-count display
42-segment bargraph
Clamping diameter: 40 mm
AC current: 0.05 A to 1,000 A
AC voltage: 0.5 V to 750 V
DC voltage: 0.2 V to 1,000 V
Resistance: 0.2 Ω to 4 kΩ
Frequency: 10 Hz to 4 kHz (A) / 10 kHz (V)
Audible continuity test & diode test
Safety: EN 61010 CAT III 600 V
Functions:
HOLD
PEAK (capture of 1ms signals)
MIN-MAX
REL (relative measurements)
The MX 650 clamp combines the functions of an AC/DC multimeter and an AC current clamp up to 1,000 A.
It is extremely easy to grip with a highly readable display.
Specifications:
4,000-count display
42-segment bargraph
Clamping diameter: 40 mm
AC current: 0.05 A to 1,000 A
AC voltage: 0.5 V to 750 V
DC voltage: 0.2 V to 1,000 V
Resistance: 0.2 Ω to 4 kΩ
Frequency: 10 Hz to 4 kHz (A) / 10 kHz (V)
Audible continuity test & diode test
Safety: EN 61010 CAT III 600 V
Functions:
HOLD
PEAK (capture of 1ms signals)
MIN-MAX
REL (relative measurements)
