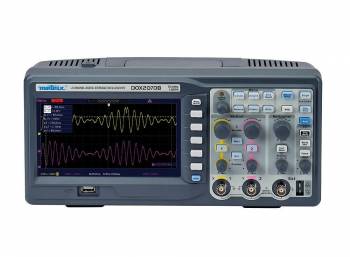

Metrix DOX2070B DOX 2070B Digital oscilloscope 2x70 MHz, color display, USB, Ethernet content_copy

The digital bench oscilloscope DOX2070B from Metrix is a two-channel measuring instrument with a bandwidth of up to 70 MHz, specifically designed for precise signal analysis in laboratory environments. It features a 7-inch LCD colour display with WVGA resolution (800x480), enabling clear and detailed representation of signal waveforms. The display is individually configurable and offers up to 16 horizontal grid lines, supporting accurate visual evaluation. Operation is performed via rotary knobs and illuminated function keys on the front panel, ensuring intuitive and fast handling.

Applications
This oscilloscope is suitable for a wide range of applications in the fields of electronics and measurement technology, particularly in laboratories, during the development and maintenance of electronic devices, and for the analysis of AC and pulse signals. The high bandwidth and fast sampling rate make it suitable for examining high-frequency signals and short pulses.

Functions and Equipment in Detail
The device offers 12 vertical measurement ranges with a sensitivity from 2 mV/div to 10 V/div, allowing flexible adaptation to different signal amplitudes. The timebase ranges from 2.5 ns/div to 50 s/div, enabling the display of both very fast and slow signals. The maximum sampling rate is 500 MS/s for two channels or 1 GS/s for one channel in Single Shot mode, while up to 50 GS/s can be achieved in Repeat mode. These high sampling rates ensure accurate signal capture, even for short pulses. The vertical resolution is 8 bits, providing sufficient signal resolution.

Technology Explained Simply
The integrated 5 MATH functions, including Fast Fourier Transform (FFT), enable detailed real-time signal analysis. The FFT function allows conversion of time-domain signals into the frequency domain, which is particularly useful for spectral component analysis. Signal acquisition is performed via two channels and one external trigger channel, supporting complex trigger functions. Additional features such as auto-calibration, digital filters, and the PASS/FAIL test function extend functionality and enable precise and reproducible measurements.

Compatibility and Accessories
For data transfer to a PC, USB and Ethernet interfaces (RJ45) are available. The EASYSCOPE software enables control of the oscilloscope as well as storage and analysis of measured data. The software supports connections via the mentioned interfaces and provides a user interface for analysis and documentation of measurement results.

Mounting and Installation
The oscilloscope is designed as a bench instrument and can be safely transported and securely positioned on a workbench thanks to the integrated carrying handle and non-slip feet. It requires no special mounting or installation; commissioning is done by simply connecting the power supply and measurement probes.

Operational Advantages
The combination of high bandwidth, fast sampling rate, and extensive analysis functions enables detailed and precise signal analysis. Simultaneous display of 32 automatic measurements along with manual cursor measurements facilitates evaluation. Integrated functions such as ROLL and RECORDER expand application possibilities, especially for long-term measurements or recording signal waveforms. The safety class IEC 61010-1 / 300 V CAT II ensures operation in environments with electrical voltages up to 300 V CAT II, which is sufficient for typical laboratory and development environments.

General
Sampling rate single shot	500 MS/s
Sampling rate repetition	50 GS/s
Screen size	7 Zoll
Vertical resolution	8 Bit
FFT

---
