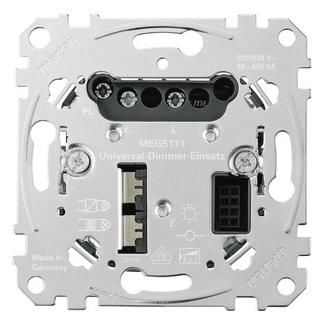

For ohmic, inductive or capacitive loads, e.g. incandescent lamps, dimmable LED lamps, dimmable wound transformers or dimmable electronic transformers. (Phase control or phase trailing edge). The universal dimmer automatically detects the connected load. Do not connect mixed loads. With claw and screw fastening. With screw terminals. Functions: -Switching and dimming from one output. The module determines how the function of the insert is used. External control via a PlusLink input. Overload and short-circuit proof. Soft start. Memory function. Nominal voltage: AC 220/230 V, 50/60 Hz. Connection cross-section: max. 2x2.5 mm². Fuse: 16 A circuit breaker. Neutral conductor: not required. Switching capacity with Basic and Comfort button module: LED lamps: 7-210 W (phase trailing edge). 7-50 W (phase leading edge). Incandescent lamps: 10-420 W. Halogen lamps: 10-420 W (230 V). 30-420 VA (low voltage with dimmable wound transformer). 10-420 VA (low voltage with dimmable electronic transformer). Switching capacity with Comfort Plus button module, Wiser button module, rotary control, timer, Argus: LED lamps: 14-210 W (trailing edge phase control). 14-50 W (leading edge phase control), RL-LED mode can only be set via the Wiser Room app and from dimmer insert version 0B. Incandescent lamps: 20-420 W. Halogen lamps: 20-420 W (230 V). 40-420 VA (low voltage with dimmable wound transformer). 20-420 VA (low voltage with dimmable electronic transformer). To be completed with: Button module Basic, 1-way System M MEG5110-0300, System Design MEG5110-60xx Button module Basic, 2-way System M MEG5120-0300, System Design MEG5120-60xx Button module Comfort, 1-way System M MEG5111-0300, System Design MEG5111-60xx Button module Comfort, 2-way System M MEG5121-0300, System Design MEG5121-60xx Button module Comfort Plus with IR, 1-way System M MEG5112-0300. Button module Comfort Plus, 2-way System M MEG5122-0300. Wiser button module, 1-way System M MEG5113-0300, System Design MEG5113-60xx Wiser button module, 2-way System M MEG5123-03xx, System Design MEG5123-60xx Rotary control module System M MEG5252-03xx/-04xx. ARGUS 180 UP sensor module System M MEG5710-03xx/-04xx, System Design MEG5710-60xx ARGUS 180 UP sensor module with switch System M MEG5711-03xx/-04xx, System Design MEG5711-60xx ARGUS presence 180/2.20 m. UP sensor module System M MEG5530-03xx/-04xx ARGUS presence sensor module with IR MEG5522-00xx Timer module standard System M MEG5754-03xx/-04xx Timer module System M MEG5755-03xx/-04xx, System Design MEG5755-60xx. Transmitter: Extension Plus, 1-way System M MEG5119-0300, System Design MEG5119-60xx Extension Plus, 2-way System M MEG5129-0300, System Design MEG5129-60xx Central station insert MEG5190-0000. Accessories: PlusLink distributor (3 phases) MEG5130-0001. PlusLink extension MEG5130-0000.
Questions & answers
What is the delivery time of Merten MEG5171-0000 universal dimmer insert?
The article Merten MEG5171-0000 universal dimmer insert is currently
in stock
According to our experience the article is ready for dispatch within 2 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Merten MEG5171-0000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Merten MEG5171-0000 universal dimmer insert always at the best possible price. We can give you a discount of 2% on
Merten MEG5171-0000 universal dimmer insert if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Merten MEG5171-0000 universal dimmer insert we can offer you a price of 122,38 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Merten MEG5171-0000 universal dimmer insert via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
