Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W
|
75,62 EUR 77,52 EUR |
|||||||||||
|
( 89,99 EUR incl. VAT ) ≈ £64.81 | ≈ $85.90 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 1990018 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MEG4366-0120 | ||||||||||
| UPC/EAN: | 4042811232399 | ||||||||||
| Weight: | 0.146 kg | ||||||||||
| Type: | MEG4366-0120 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Switch flush surface from MertenFurther products in category Switch flush surface
All products of Merten
Product information for Merten MEG4366-0120:

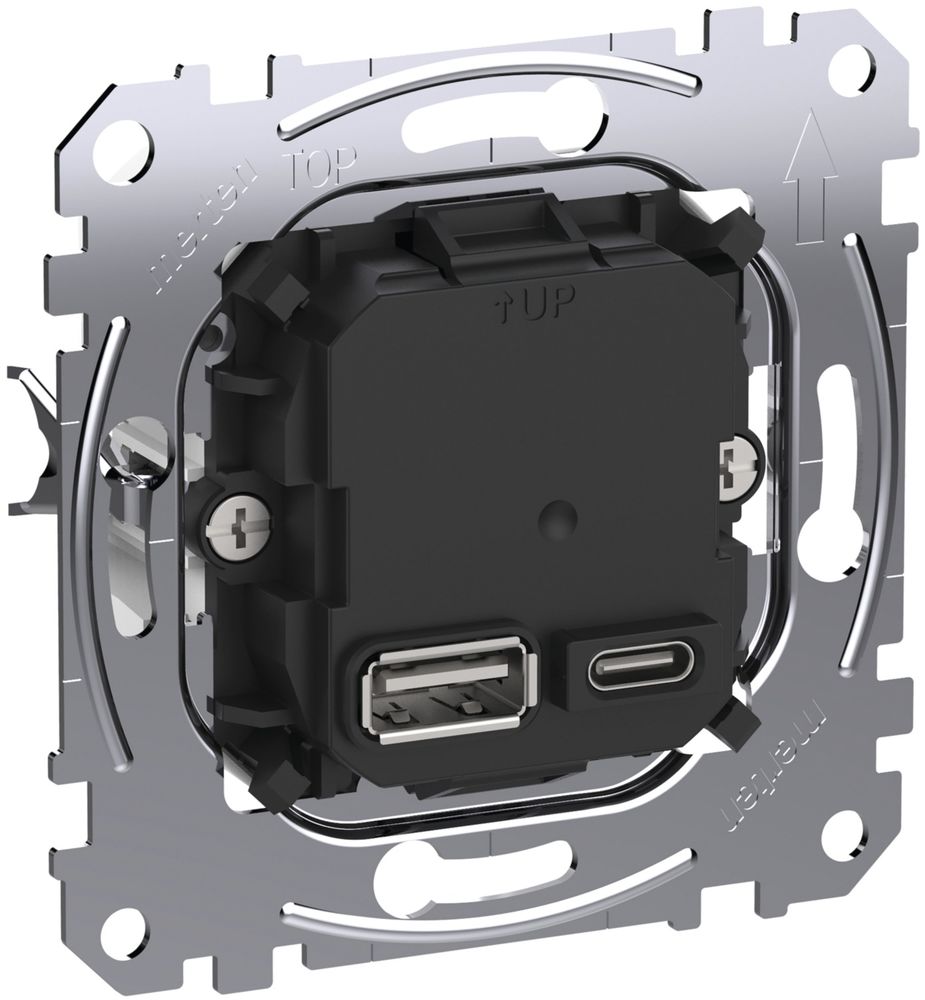

The Merten System M USB charger MEG4366-0120 is a device with a mounting frame and claws with 2 USB outputs A+C, which enables the charging of mobile/tablet and notebook devices. The input voltage of this device is 240V. The power consumption is less than 0.1W and the nominal output power of this USB charger is 45W with PD technology. The output voltage and associated current are automatically adjusted by the PD protocol: 5V/3A 9V/3A 12V/3A 15V/3A 20V/2.25A for USB C and 5V 1.5A 7.5W for USB A. In addition, the rated operating voltage of this device is between 100 volts and 240 volts. The output voltage of this device varies between 5 - 20 volts. This USB charger has electronic overload and temperature protection, which increases the level of safety. Fastening is done using screws. The installation box can be embedded flush into the surface. The dimensions are 51 mm wide, 40.7 mm high and 30 mm deep, with an installation depth of 30.8 mm. This USB charger is very robust, with a lifespan of 30,000 hours. It also achieves protection class IK04, which protects against an impact of 0.5 joules. This USB charger achieves IP20 protection against solid objects and liquids. In addition, it complies with directives 2002/95/EC - RoHS Directive, 2002/96/EC - WEEE Directive, 2004/108/EC - Electromagnetic Compatibility, 2006/95/EC - Low Voltage Directive. HS directive, 2002/96/EC - WEEE directive, 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive. Since this device is environmentally friendly, it also complies with Regulation (EC) No. 1907/2006. The USB charger is made of PC (polycarbonate) GF10 FR, making it as resistant as possible. It has also received EAC certificate. In addition, it meets the standards EN 60950-1, EN 62684, ETSI EN 301 489-4. The System M series is based on 4 different surfaces and materials. With 9 different design variants and over 280 functions, the system can meet every customer requirement.
Questions & answers
What is the delivery time of Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W?
The article Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Merten MEG4366-0120 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W always at the best possible price. We can give you a discount of 2% on Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Merten MEG4366-0120 USB charging insert type A+C with power delivery technology and 45W we can offer you a price of 75,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
