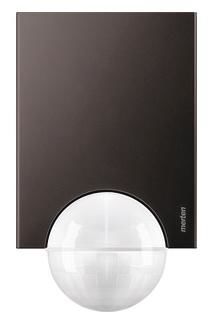

Merten 632515 KNX ARGUS 220 dark brown ,

KNX ARGUS 220. KNX motion detector for outdoor use. 220° area monitoring for large house fronts and house sections. With integrated bus coupler. The physical address is programmed with a magnet. 360° short-range range (approx. 4 m radius). Large wiring space and plug system. Loop formation is possible. LED function display for quick alignment at the installation location. The operating elements are protected under the easily accessible cover plate. Flexibly adjustable sensor head. Masking of individual lens areas is possible. Can be mounted on walls and ceilings without additional accessories. Can be mounted on inside/outside corners and standpipes with mounting brackets. KNX software functions: Five motion blocks: Up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, deactivation function. Sensitivity, brightness and staircase lighting time can be set using the ETS or the potentiometer. Self-adjusting staircase lighting time. Detection angle: 220°. Range: max. 16 m. Number of levels: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously adjustable from approx. 3 - 1000 lux (infinite lux: motion detection is independent of the position of the sensor head). Time: externally adjustable from 1 s to approx. 8 min. in 6 levels or via ETS from approx. 3 s to approx. 152 hours. Sensitivity: continuously adjustable. Possible settings for the sensor head: Wall mounting: 9° above, 24° below, 12° left/right, ±12° axial. Ceiling mounting: 4° above, 29° below, 25° left/right, ±8.5° axial. Protection class: IP 55. Contents: With cover plate and segments to limit the detection area, screws and dowels. Color: dark Brazilian.
