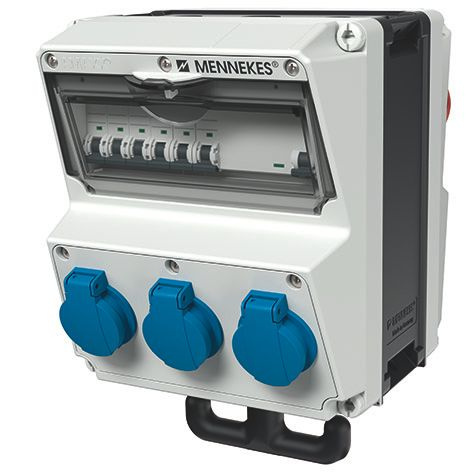

Mennekes 970002 AMAXX socket outlet combination housing 260x225 mm (H x W) electro grey

Your rating:
Average rating
product review for Mennekes 970002 AMAXX socket outlet combination housing 260x225 mm (H x W) electro grey
( 4.3 / 5 ) 6 ratings
Mennekes 970002
This image may differ from the desired article.
1.195,58 EUR 1.245,92 EUR
( 1.422,74 EUR incl. VAT )
≈ £1,000.70  |  ≈ $1,313.94
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mennekes 970002 AMAXX socket outlet combination housing 260x225 mm (H x W) electro grey
Lieske Part No.:367058
Mfg Part No: 970002
UPC/EAN: 4015394271550
Weight:5 kg
Type:970002
Graduated prices net
From piecesPrice per pieces
21.114,88 EUR
41.034,18 EUR
6953,48 EUR
8872,77 EUR

Product information for Mennekes 970002:

The suspended combination from the AMAXX® product family offers you the possibility of providing a comprehensive power supply suspended freely from the ceiling in the room and uses all the advantages of the well-known AMAXX® product family for wall mounting. It is available in various configurations (max. 10 division units) and can optionally be equipped with a compressed air connection (see accessories). The product is pre-wired and ready for connection and tested for electrical safety and quality in accordance with IEC 61439. The pull-out top hat rails and the large connection space make connection work easier. The suspension eyelets are integrated in the housing and shaped so that any accumulation of moisture can drain away reliably. A chain set is included with each combination. A handy handle on the underside makes it easier to plug and unplug the plug. Our AMAXX product range is characterized by high impact resistance and dimensional stability in cold and heat as well as the reduction of risks in the event of a fire thanks to self-extinguishing material.

Technical data
CEE 32 A, 5 p, 400 V1
CEE 16 A, 5 p, 400 V1
SCHUKO®3
Protection1 FI 40 A, 4 p, 0,03A1 LS 16 A, 3 p, C3 LS 16 A, 1 p, C
Max. fuse32 A
InA32 A
RDF1
Connection / Supply cablefor 1 cable up to 5 x 10 mm²
Degree of protectionIP44
Housing materialPlastic
Weight5000 g
Height260 mm
Width225 mm
