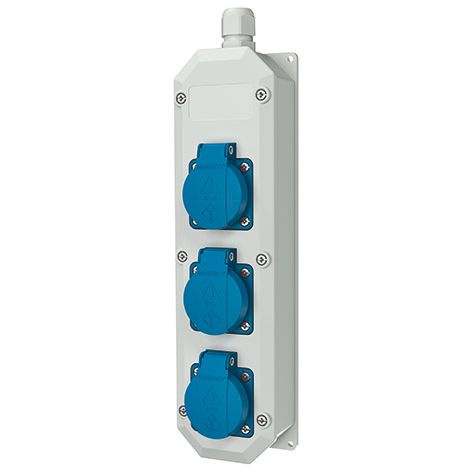

Mennekes 96700 standard power strip pre-wired and ready for connection
|
188,48 EUR 196,42 EUR |
|||||||||||
|
( 224,29 EUR incl. VAT ) ≈ £157.76 | ≈ $207.14 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 165104 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 96700 | ||||||||||
| UPC/EAN: | 4015394092391 | ||||||||||
| Weight: | 0.439 kg | ||||||||||
| Type: | 96700 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Mennekes 96700:
Applications
The socket strip is suitable for use in technical and industrial environments where a safe and reliable power supply for multiple devices is required. The IP44 protection rating also makes it suitable for areas where occasional moisture or splashing water may occur, although direct wetness or immersion is not expected. The pre-wired configuration reduces installation time and minimizes error sources during installation.
Functions and equipment in detail
The strip features three SCHUKO® sockets with a rated voltage of 230 V and a rated current of 16 A. The sockets are configured as two-pole with earth (2p+E), ensuring a safe and standard-compliant power supply. The socket strip is designed for use with a single supply cable, connected via an M20 push-in connector located at the top of the housing. The strain relief is integrated internally, ensuring secure cable fixation and reducing mechanical stress on the connection points. The lower housing section is rotatable by 180°, allowing flexible orientation of the sockets according to mounting conditions and space constraints.
Technology explained simply
The protection rating IP44 means the device is protected against ingress of foreign objects larger than 1 mm in diameter (e.g. dust) and against splashing water from any direction. This makes the socket strip suitable for areas where occasional moisture or splashing water may occur, although direct immersion is not expected. The use of AMAPLAST® as housing material ensures high mechanical stability and weather resistance. The pre-wired configuration means the strip is already equipped with the necessary cable connections, allowing it to be put into operation immediately after connecting the supply cable.
Compatibility and accessories
The socket strip is designed for a supply cable with a cross-section of up to 3 x 2.5 mm². The connection is made via an M20 push-in connector, suitable for connecting to standard installation conduits or flexible cables.
Mounting and installation
Mounting is done via the M20 push-in connector located at the top of the housing, with the internal strain relief reducing mechanical stress on the cable. The lower housing section can be rotated 180° to adjust the socket orientation according to the specific mounting conditions. The socket strip is suitable for installation in vertical or horizontal positions, with mounting height and position to be determined according to application and local regulations. The pre-wired configuration reduces installation time and minimizes error sources.
Operational advantages
The pre-wired configuration and integrated strain relief ensure quick and secure installation. The IP44 protection rating provides sufficient protection against splashing water and dust, extending the service life of the strip in moist or dusty environments. The use of AMAPLAST® as housing material ensures high mechanical stability and weather resistance. The three SCHUKO® sockets allow simultaneous use of multiple devices at one location, increasing operational efficiency. The rotatable orientation of the lower housing section offers flexibility during installation and enables optimal positioning of the sockets.
| Technical data | |
| SCHUKO® | 3 |
| Connection / Supply cable | for 1 cable up to 3 x 2.5 mm² |
| Degree of protection | IP44 |
| Housing material | Plastic |
| Weight | 439 g |
| Height | 330 mm |
| Width | 80 mm |
| Test mark | EAC |
