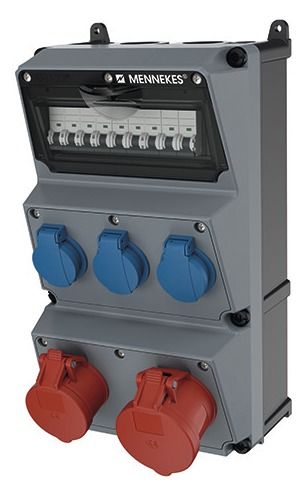

Mennekes 930030 socket combination , AMAXX 390x225mm IP44

Combine instead of installing individually. Many individual sockets with separate supply cables are expensive, impractical and increase the fire load. With AMAXX you combine cleverly and save valuable assembly time. Why? Only one supply cable, fewer drill holes, fewer cable and pipe clamps and only one housing, the external fastening of which enables one-man assembly. The hinged housing cover that opens at the side, the pull-out top hat rails and the large connection space make connection work easier. AMAXX is pre-wired and ready for connection and tested for electrical safety and quality in accordance with IEC 61439. Due to the high chemical resistance, the highly heat-resistant contact carriers and the nickel-plated contacts, this combination is particularly suitable for use in aggressive atmospheres, such as those often found in food processing plants, slaughterhouses and agricultural operations. Other advantages are the generally slanted plug direction for easier handling when plugging and unplugging, the transparent operating window for DIN rail devices (if available) with a snap-in closure, several different, pre-formed cable entry options and the captive cover screws for quickly opening and closing the housing. Our AMAXX product range is characterized by high impact resistance and dimensional stability in cold and heat as well as the reduction of the danger in the event of a fire thanks to self-extinguishing material. Application areas: anywhere where you want to score points not only technically but also visually. Do you also want to combine data technology and not install it individually, do you need a solution for a narrow niche, do you want to have a mobile unit always to hand or even install a suspended solution? Our AMAXX product family offers a wide range of solution options. Speak to your advisor.
