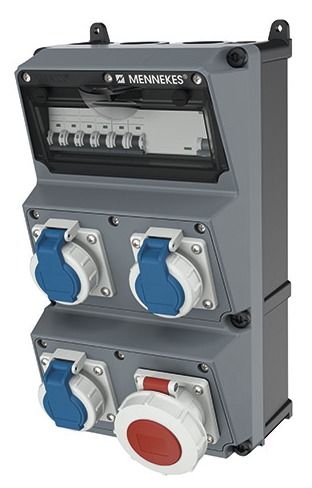

Mennekes 930027 socket combination AMAXX

Your rating:
Average rating
product review for Mennekes 930027 socket combination AMAXX
( 4.6 / 5 ) 7 ratings
Mennekes 930027
This image may differ from the desired article.
Mennekes 930027Mennekes 930027
1.213,53 EUR 1.264,63 EUR
( 1.444,10 EUR incl. VAT )
≈ £1,015.72  |  ≈ $1,333.67
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mennekes 930027 socket combination AMAXX
Lieske Part No.:123564
Mfg Part No: 930027
UPC/EAN: 4015394224013
Weight:5.58 kg
Type:930027
Graduated prices net
From piecesPrice per pieces
21.168,02 EUR
41.122,52 EUR
61.077,01 EUR
81.031,50 EUR

Product information for Mennekes 930027:

Combine instead of installing individually. Many individual sockets with separate supply cables are expensive, impractical and increase the fire load. With AMAXX you combine cleverly and save valuable assembly time. Why? Only one supply cable, fewer drill holes, fewer cable and pipe clamps and only one housing, the external fastening of which enables one-man assembly. The hinged housing cover that opens at the side, the pull-out top hat rails and the large connection space make connection work easier. AMAXX is pre-wired and ready for connection and tested for electrical safety and quality in accordance with IEC 61439. Due to the high chemical resistance, the highly heat-resistant contact carriers and the nickel-plated contacts, this combination is particularly suitable for use in aggressive atmospheres, such as those often found in food processing plants, slaughterhouses and agricultural operations. Other advantages are the generally slanted plug direction for easier handling when plugging and unplugging, the transparent operating window for DIN rail devices (if available) with a snap-in closure, several different, pre-formed cable entry options and the captive cover screws for quickly opening and closing the housing. Our AMAXX product range is characterized by high impact resistance and dimensional stability in cold and heat as well as the reduction of the danger in the event of a fire thanks to self-extinguishing material. Application areas: anywhere where you want to score points not only technically but also visually. Do you also want to combine data technology and not install it individually, do you need a solution for a narrow niche, do you want to have a mobile unit always to hand or even install a suspended solution? Our AMAXX product family offers a wide range of solution options. Speak to your advisor.

Technical data
CEE 16 A, 5 p, 400 V1
SCHUKO®3
Protection1 FI 40 A, 4 p, 0,03 A 1 LS 16 A, 3 p, C 3 LS 16 A, 1 p, C
Max. fuse100 A
InA27 A
RDF0,85
Connection / Supply cablefor 2 conductors up to 5 x 25 mm²
Degree of protectionIP67
Housing materialplastic, high chemical resistance / AMELAN
Weight5580 g
Height390 mm
Width225 mm
Test markEAC


Questions & answers

What is the delivery time of Mennekes 930027 socket combination AMAXX?

The article Mennekes 930027 socket combination AMAXX is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mennekes 930027 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mennekes 930027 socket combination AMAXX always at the best possible price. We can give you a discount of 2% on Mennekes 930027 socket combination AMAXX if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Mennekes 930027 socket combination AMAXX we can offer you a price of 1.168,02 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
