Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54

Your rating:
Average rating
product review for Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54
( 4.4 / 5 ) 5 ratings

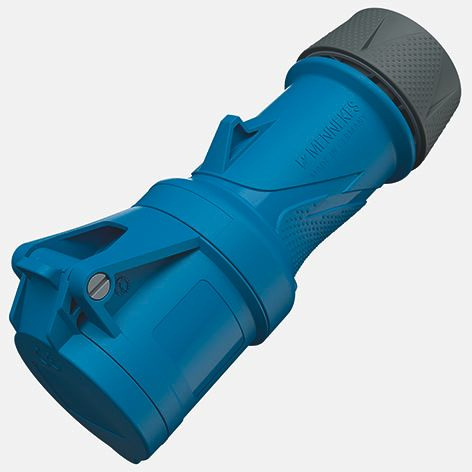

Mennekes 14502
This image may differ from the desired article.
Mennekes 14502Mennekes 14502
17,95 EUR 18,71 EUR
( 21,36 EUR incl. VAT )
≈ £15.02  |  ≈ $19.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54
Lieske Part No.:1776351
Mfg Part No: 14502
UPC/EAN: 4015394293910
Weight:0.2 kg
Type:14502
Graduated prices net
From piecesPrice per pieces
1517,14 EUR
3016,33 EUR
7015,53 EUR
10014,72 EUR

Product information for Mennekes 14502:

The Mennekes CEE coupling PowerTOP Xtra 14502 is an industrial connector for use in electrical installations with a rated voltage of 230 V and a rated current of 16 A. The device features a 3-pole connection with a 6 mm pin spacing and is designed for use in industrial and commercial environments where a reliable and safe power supply is required. The coupling has been developed as a successor to types 180A, 180AC, and 510 and offers a modern, ergonomically shaped housing design that facilitates handling of the device.

CEE-form connector
The coupling conforms to the CEE-form, an internationally recognised standard for connectors in industry. This form ensures a uniform and secure connection between plug and coupling, regardless of the manufacturer. The 3-pole configuration (3p) includes the live conductor, neutral conductor, and protective earth conductor, enabling a safe and complete electrical connection. The pin spacing of 6 mm (6h) is intended for use with corresponding plugs and cables and ensures a precise fit.

Functions and equipment in detail
The coupling features a rubberised cable gland that allows secure fastening of the connected cable and protects against mechanical stress and cable pull-out. The screwing technique ensures a firm and durable connection that remains stable even under difficult operating conditions. The ergonomic housing is designed to allow comfortable handling, especially during frequent plugging and unplugging.

Technology explained clearly
The IP54 protection rating means the device is protected against dust and splashing water. This makes the coupling suitable for use in indoor environments as well as outdoors where occasional moisture or spray water may occur. The term X-Contact refers to the special contact technology that ensures a reliable electrical connection and high contact stability. Power supply is provided via the connected cable, as the coupling itself does not have an integrated power supply or battery.

Compatibility and accessories
The coupling is compatible with CEE plugs of the same rated voltage (230 V) and rated current (16 A), as well as a pin spacing of 6 mm. It can be used in combination with corresponding plugs and cables to ensure a safe power supply for machines, tools, or other electrical devices. The use of accessories such as protective caps or additional cable glands is possible, provided they are compatible with the CEE-form and technical specifications.

Mounting and installation
Mounting is done via the integrated screwing technique, with the cable secured to the device using the rubberised cable gland. The coupling can be installed at suitable mounting points, such as wall brackets or in enclosures. Installation does not require special tools, although the use of appropriate screwdrivers or wrenches for securing the cable gland is recommended.

Advantages in operation
The coupling offers high mechanical stability and a reliable electrical connection. The IP54 protection rating provides increased safety when used in damp or dusty environments. The ergonomic housing design and rubberised cable gland facilitate daily handling and ensure a long service life of the device. The successor positioning to types 180A, 180AC, and 510 indicates that coupling 14502 represents an advancement of the existing product line, retaining the advantages of the predecessor models and extending them.

General
Nominal voltage230 V
Nominal current16 A
Number of poles3 p
Pole spacing6 mm
Degree of protectionIP54
Contact technologyX-Contact
Mounting techniquescrew technology
Housing designErgonomic
Screw connectionRubberized
Technical data
Ampere16 A
Poles3 p
Volt230 V
Time setting6 h
Hertz50-60 Hz
Connection systemscrew connection technology ErgoCONTACT®
ContactX-CONTACT®
Degree of protectionIP54
Weight200 g
Test markVDE, EAC, CQC, CB Certificate


Questions & answers

What is the delivery time of Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54?

The article Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mennekes 14502 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54 always at the best possible price. We can give you a discount of 2% on Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Mennekes 14502 CEE coupling Xtra 16 A 3-pole 6h 230 V IP54 we can offer you a price of 17,14 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
