Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No.

Your rating:
Average rating
product review for Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No.
( 4.4 / 5 ) 29 ratings

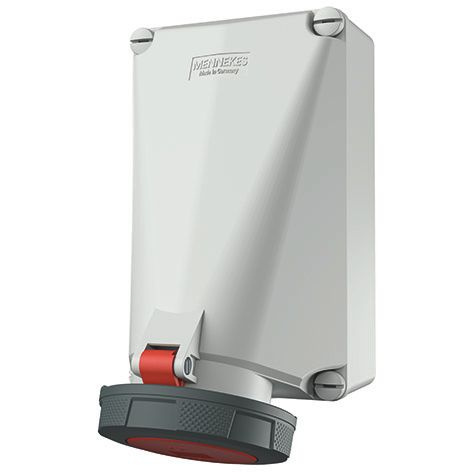

Mennekes 143
This image may differ from the desired article.
Mennekes 143Mennekes 143
1.453,40 EUR 1.514,60 EUR
( 1.729,55 EUR incl. VAT )
≈ £1,216.50  |  ≈ $1,597.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No.
Lieske Part No.:291089
Mfg Part No: 143
UPC/EAN: 4015394000730
Weight:2.102 kg
Type:143
Graduated prices net
From piecesPrice per pieces
21.257,19 EUR
41.060,98 EUR
6864,77 EUR
8668,56 EUR

Product information for Mennekes 143:

The Mennekes wall socket type 143 is an industrial CEE-form connector for use in demanding environments. With a rated current of 125 A and a rated voltage of 400 V, it is designed for supplying high-performance devices and machines. The socket features 5 poles and is designed for frequencies in the range of 50 to 60 Hz. The time alignment is 6 h, ensuring correct orientation of the plug during connection. The protection rating IP67 provides high resistance against dust and water, including temporary submersion, making the socket suitable for outdoor use as well as in damp or dirty industrial environments.

Applications
The wall socket type 143 is suitable for industrial applications where reliable and robust power supply is required. Typical use cases include production halls, construction sites, warehouses, or mobile workstations, where high mechanical loads, moisture, or dirt occur. The IP67 protection rating allows use in environments where the socket is exposed to direct weather or splashing water. The high current rating of 125 A makes it particularly suitable for large machines, tool systems, or mobile devices with high energy demands.

Functions and equipment in detail
The socket is equipped with a screw contact, ensuring a secure and durable connection to the supply cable. The contact carriers are made of high-temperature-resistant material and are marked X-CONTACT®, indicating a special contact technology optimized for high thermal load capacity and low contact resistance. The socket features a rubberized bayonet ring, which enhances mechanical stability and connection security. The device color is gray, typical for industrial electrical equipment, providing good visibility in work environments.

Technology explained simply
The IP67 protection rating means the socket is completely dust-tight and protected against temporary submersion in water. This makes it particularly suitable for outdoor use or in damp indoor areas. The rated voltage of 400 V and rated current of 125 A are typical for industrial applications involving multiple phases and high power. The 5-pole configuration includes the three live conductors (L1, L2, L3), the neutral conductor (N), and the protective earth conductor (PE). The 6 h time alignment ensures the plug can only be inserted in the correct position, preventing incorrect connections. The screw contacts ensure a mechanically stable and electrically reliable connection, even with frequent plugging and unplugging.

The socket is designed for wall mounting. Installation is done via an integrated mounting arrangement, with the socket featuring a rotatable bottom that can be rotated 180°. This allows flexible orientation of the supply cable, which can be introduced from above or below. The housing and insert are made of Amaplast, a robust plastic suitable for industrial applications. The socket is designed for use in systems according to DIN 0623, ensuring compatibility with other CEE-form connectors.

Compatibility and accessories
The wall socket type 143 is compatible with CEE-form plugs of the same rated values (125 A, 400 V, 5-pole). It can be connected to matching plugs and cables that also comply with DIN 0623. The use of pilot contacts is available upon request, which may be relevant for special applications requiring additional signal transmission. The socket is designed for use in industrial power supply systems and can be integrated into existing installations that meet these specifications.

Installation and mounting
Mounting is done on a wall or suitable base. The socket features an integrated mounting system enabling secure and stable installation. The cable is introduced from above or below, with the rotatable bottom allowing flexible cable orientation. The screw contacts require a screwdriver to secure the supply cable. Installation should be carried out by a qualified electrician to ensure safety and proper function.

Operational advantages
The socket offers high mechanical and electrical reliability through the use of high-temperature-resistant contact carriers and screw contacts. The IP67 protection rating provides a high level of protection against environmental influences, increasing service life and safety. The 5-pole configuration enables connection to three-phase systems, common in industry. The flexible mounting and rotatable bottom simplify installation and cable routing. Compatibility with DIN 0623 ensures use in standardized industrial power supply systems.

Technical data
Ampere125 A
Poles5 p
Volt400 V
Time setting6 h
Hertz50-60 Hz
Connection systemScrew contact
Contacthigh-temperature-resistant contact carriers, X-CONTACT®
Degree of protectionIP67
Weight2102 g
Test markEAC, CQC


Questions & answers

What is the delivery time of Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No. ?

The article Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No. is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mennekes 143 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No. always at the best possible price. We can give you a discount of 2% on Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Mennekes 143 125A5P 6H400V wall socket IP67 waterproof No. we can offer you a price of 1.257,19 EUR per piece. The more you buy, the cheaper the article will be.
