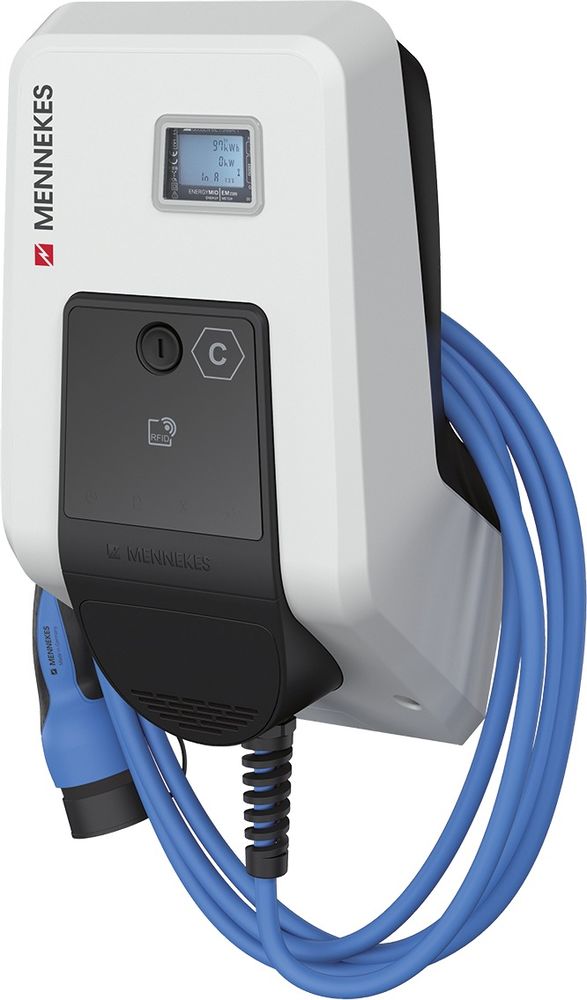

Mennekes 1386202 AMTRON® Professional+ 22 C2 Wallbox content_copy

The intelligent MENNEKES® AMTRON® Wallbox for all customers who organize professional operations using the backend, such as charging infrastructure operators from industry and commerce. High-quality and functional design with integrated cable suspension. Protection class IP 44 COMMUNICATION / NETWORKING Can be networked locally via LAN (RJ45) Back-end connection via cellular modem (Micro-SIM, 3G (UMTS) / 4G (LTE)) Back-end connection of up to 50 charging points via a SIM card Compatible with OCPP 1.5 and OCPP 1.6 CHARGING - AND LOAD MANAGEMENT Dynamic and phase-accurate load management for up to 100 charging points Connection of an external MODBUS TCP meter for blackout protection The operating status of the wallbox is visualized by four different colored LEDs: Ready for operation, charging in progress, waiting time and malfunction are shown by the four LEDs in the colors blue and green , white and red are displayed. Charging power up to 7.4 kW (1ph) / 22 kW (3ph) The charging power can be adjusted on the device by a qualified electrician. Permanently connected charging cable, length 7.5m with type 2 charging coupling for Mode 3 charging. Externally readable MID certified energy meter. Including calibration law-compliant data transfer of signed measured values. DC residual current monitoring > 6 mA Integrated residual current (type A) and circuit breaker (32 A) MULTIFUNCTION BUTTON with trigger function for the residual current circuit breaker and with restart function for circuit breakers and residual current circuit breakers. AUTHORIZATION via backend (e.g. APP) or RFID card
