Mennekes 10087 15A2P+E 125V NEMA mounting socket blue

Your rating:
Average rating
product review for Mennekes 10087 15A2P+E 125V NEMA mounting socket blue
( 4.6 / 5 ) 41 ratings

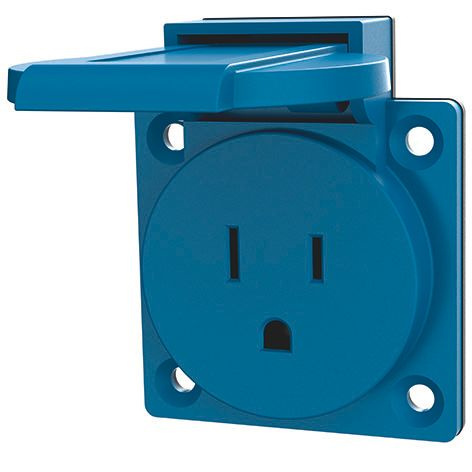

Mennekes 10087
This image may differ from the desired article.
Mennekes 10087Mennekes 10087
107,54 EUR 112,07 EUR
( 127,97 EUR incl. VAT )
≈ £90.01  |  ≈ $118.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Mennekes 10087 15A2P+E 125V NEMA mounting socket blue
Lieske Part No.:678939
Mfg Part No: 10087
UPC/EAN: 4015394162773
Weight:0.04 kg
Type:10087
Graduated prices net
From piecesPrice per pieces
5103,51 EUR
1099,47 EUR
1595,44 EUR
2091,41 EUR

Product information for Mennekes 10087:

The Mennekes 10087 is a NEMA mounting socket with a rated voltage of 125 V and a rated current of 15 A. It features two poles and a protective earth conductor (2P+E) and is specifically designed for use in the USA and Canada. The socket is finished in blue and includes a hinged cover, ensuring a secure and dust-protected closure. The flange allows for secure mounting on surfaces and is equipped with four mounting holes. The flange dimensions are 50 mm × 50 mm, while the socket itself has a mounting height of 38 mm × 38 mm. A black flange gasket (part number 90542000) is included as part of the equipment and provides sealing against ambient moisture.

Applications

The socket is suitable for industrial, commercial, and commercial applications, particularly in regions where NEMA socket standards apply. It is appropriate for powering electrical appliances, tools, and machinery requiring a 125 V supply voltage and current consumption up to 15 A. The robust construction and hinged cover also make it suitable for outdoor or damp environments, provided the mounting conditions meet the requirements.

Functions and Equipment in Detail

The socket is equipped with a hinged cover that protects the socket contacts when not in use. This prevents dust and moisture ingress and increases the service life of the contacts. The flange with four mounting holes enables secure and stable mounting on walls, panels, or other surfaces. The blue color is typical for NEMA sockets and serves as a visual identifier. The black flange gasket ensures improved sealing and prevents moisture from entering at the mounting point.

Technology Explained Simply

The socket complies with the NEMA socket standard, which is standardized in the USA and Canada. The designation 15A2P+E indicates that it is designed for a maximum current of 15 amperes, with two live conductors (poles) and a protective earth conductor (E). The rated voltage is 125 volts. The design with a hinged cover and flange is intended for durable and secure installation. The flange gasket enhances protection against ambient moisture, allowing the socket to be used in damp or slightly wet environments, provided the mounting conditions permit.

Compatibility and Accessories

The socket is compatible with NEMA plugs that also feature the 15A2P+E configuration. The flange gasket (part number 90542000) is included as part of the equipment and serves for sealing.

Mounting and Installation

Mounting is done via the flange with four mounting holes. The flange dimensions (50 mm × 50 mm) and socket dimensions (38 mm × 38 mm) allow for precise attachment to suitable surfaces. The flange gasket is placed between the flange and the mounting surface during installation to ensure a tight connection. Installation does not require special tools, but proper mounting and wiring in accordance with applicable electrical installation regulations are required.

Operational Advantages

The socket provides reliable power supply for devices with low to medium current consumption. The hinged cover protects the contacts and enhances safety. The flange gasket improves environmental resistance, extending the socket’s service life. The clear color coding (blue) facilitates identification and use in operation. The design is intended for durable and low-maintenance installation.

General
Nominal voltage125 V
Nominal current15 A
Number of poles2 P
ColourBlue
Flange gasketBlack
Mounting holes4
CompatibilityNEMA plug 15A2P+E
Protective conductorYes
Hinged coverYes
Technical data
Ampere15 A
Poles2 p+PE
Volt125 V
Connection systemScrew contact
Contactstandard
Degree of protectionIP44
Flange50x50 mm
Drilling hole38x38 mm
Weight40 g
Test markEAC
ShutterNo


Questions & answers

What is the delivery time of Mennekes 10087 15A2P+E 125V NEMA mounting socket blue?

The article Mennekes 10087 15A2P+E 125V NEMA mounting socket blue is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Mennekes 10087 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Mennekes 10087 15A2P+E 125V NEMA mounting socket blue always at the best possible price. We can give you a discount of 2% on Mennekes 10087 15A2P+E 125V NEMA mounting socket blue if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Mennekes 10087 15A2P+E 125V NEMA mounting socket blue we can offer you a price of 103,51 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
