Meanwell DAP-04-S01 Synergy 21 power supply - DALI Controller Mean Well S01

Your rating:
Average rating
Rating for Meanwell DAP-04-S01 Synergy 21 power supply - DALI Controller Mean Well S01
( 4.4 / 5 ) 11 ratings
Meanwell DAP-04-S01Meanwell DAP-04-S01
Meanwell DAP-04-S01
This image may differ from the desired article.
23,13 EUR
( 27,52 EUR incl. VAT )
2025-10-09Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Meanwell DAP-04-S01 Synergy 21 power supply - DALI Controller Mean Well S01
Lieske Part No.:797003
Mfg Part No: DAP-04-S01
Weight:0.1 kg

Product information for Meanwell DAP-04-S01:

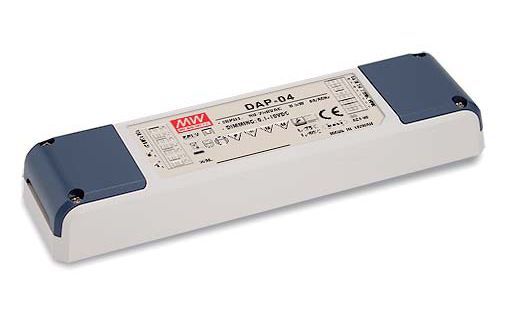

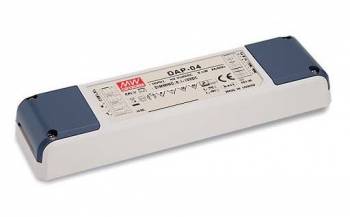

Universal DALI Controller DAP-04-S01
?DALI -> 0-10V (1 address, 4 outputs) for e.g. Mean Well HLG-xxx
Input: 90~305VAC, 127~431VDC
Output: 4 channels, 1~100% Dim but only 1 DALI address
Operating temperature: -30°C to +60°C
LxWxH 165*45*23mm
Connection via screw terminals
Further details can be found in the data sheet
The connection of electrical components and systems may only
be carried out by qualified specialist personnel!
