Manhattan 177214 Video splitter 4 port content_copy

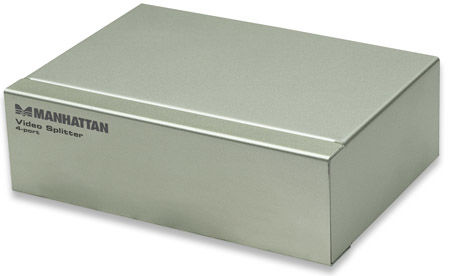

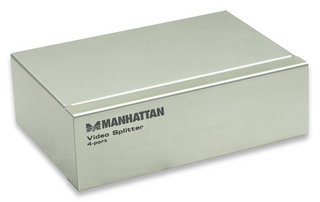

The Manhattan Video Splitter (manufacturer number 177214) is a signal-processing device for distributing a VGA video signal to four separate outputs. It enables the simultaneous display of the same image content on multiple monitors or screens, for example in surveillance systems, presentation environments, or when multiple workstations use a common signal source device. The device processes analog video signals in VGA standard and supports various signal types such as VGA, SVGA, and Multisync. The maximum resolution is 1600 x 1280 pixels, which is sufficient for many professional applications. The bandwidth of 150 MHz enables stable signal transmission at high resolutions and frequencies.

Applications

The video distributor is designed for use cases where a single video signal must be distributed to multiple display devices. Typical application fields include surveillance camera systems, conference rooms, training or presentation rooms, and workstations where multiple users need simultaneous access to the same screen content. The maximum distance between the signal source device (e.g. computer) and the distributor is 7.5 meters, while the distance between the distributor and individual monitors can be up to 50 meters. In total, this results in a maximum operating distance of 75 meters, which is sufficient for many office and industrial applications.

Functions and Equipment in Detail

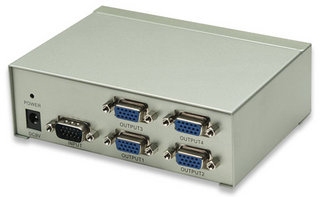

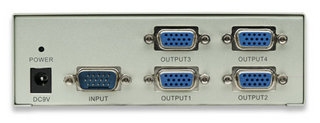

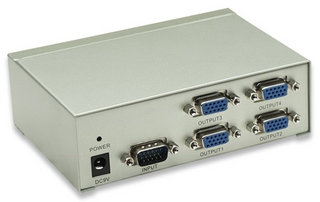

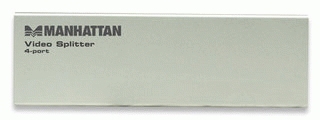

The device features one input with an HD15 male connector and four outputs with HD15 female sockets, each of which can be connected to a monitor. The connectors comply with the standard for VGA connections and are therefore compatible with most VGA-capable devices. Signal transmission occurs via analog video and sync signals, with the impedance of the input and output lines at 75 Ohms. The horizontal frequency ranges from 30 to 120 kHz, and the vertical frequency from 40 to 120 kHz, ensuring compatibility with a wide range of screens and graphics cards.

Technology Explained Simply

The distributor operates as a passive signal distribution unit, splitting the incoming video signal without distorting or compressing it. The bandwidth of 150 MHz ensures that no signal loss or image disturbances occur even at high resolutions and frequencies. The maximum resolution of 1600 x 1280 pixels is sufficient for professional use and enables clear display on connected monitors. Power supply is via an external power adapter providing 9 V DC and 300 mA, connected by a 1.6-meter cable. The device features a power LED indicating the operating status.

Compatibility and Accessories

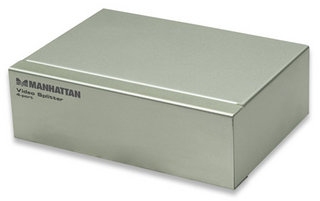

The distributor is compatible with all devices that output a VGA signal via an HD15 connector, such as PCs, laptops, graphics cards, or other video sources. The outputs are also HD15 female sockets, allowing standard VGA cables to be used. Compatibility with signal types such as VGA, SVGA, and Multisync enables use with a wide range of screens and projectors. The device is designed for indoor use and features a metallic housing providing good heat dissipation and mechanical stability.

Mounting and Installation

Installation involves connecting the input to the video output socket of the signal source device (e.g. computer) and connecting the four outputs to the respective monitors. The external power supply is connected to a power outlet, activating the device. The distributor should be positioned within the maximum range to avoid signal loss.

Advantages in Operation

The advantage of the distributor lies in the simple and reliable distribution of a video signal to multiple display devices without requiring additional software or complex configuration. Stable signal transmission at high resolutions and frequencies ensures clear and distortion-free display. The use of an external power supply reduces the load on the signal source device and allows flexible placement. The metallic housing provides protection against mechanical impacts and supports device cooling. The operating manual is included in the delivery scope and supports correct installation and use.

Features
Product colour	Grey
Maximum resolution	1600 x 1280 pixels
Maximum operating distance	75 m
Bandwidth	150 MHz
Packaging content
Manual
Ports & interfaces
Video port type	VGA
Video out	4x VGA
Video ports quantity	4
Connector(s)	4x HD15 FM
Power
DC-in requirements	9V DC / 300 mA
Weight & dimensions
Dimensions (WxDxH)	54 x 208 x 104 mm

---
