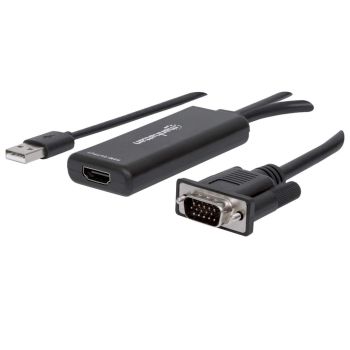

Manhattan 152426
VGA and USB to HDMI Converter Converts the analog signals VGA video and USB audio into a digital HDMI signal
|
17,69 EUR |
|
|
( 21,05 EUR incl. VAT ) ≈ £14.81 | ≈ $19.80 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1465814 |
| Mfg Part No: | 152426 |
| UPC/EAN: | 766623152426 |
| Weight: | 0.072 kg |
Product information for Manhattan 152426:
Do you have a PC without an HDMI port but would like to connect it to a display or projector using an HDMI cable? The Manhattan VGA and USB to HDMI converter makes this connection child's play with quick plug & play. Thanks to the combination of VGA and USB, the speakers on your display do not remain silent, but are simultaneously played with the audio signal. The high bandwidth of this converter enables a resolution of 1920 x 1080 (1080p) at 60 Hz, and it is also compatible with Windows and Mac systems. - Converts the analog signals VGA video and USB audio into a digital HDMI signal
- Ideal for connecting PCs, Macs and notebooks to HD monitors, HD televisions, HD projectors and more
- Supports VGA and HDMI resolutions up to 1920x1080, 1080p@60Hz, 24-bit color depth and video bandwidth up to 1.65 Gbps / 165 MHz
- Provides high quality USB digital audio; Powered by the same connection
- Compact design fits easily into notebook bags, ideal for business trip presentations and more
- Ideal in combination with Manhattan High Speed HDMI cables with Ethernet channel, e.g. B. Item no. 323215
- Plug&Play, Windows and Mac compatible, easy installation
- 3 year warranty Standards and certificates
- HDMI
- CE
- FCC
- HDCP General
- Supports HDCP pass-through
- Power: 5 V / 1 A
- VGA video formats: VGA, XGA, SVGA, SXGA, UGA Connectors
- Input: VGA / HD15 male (video)
- Input: USB Type A male (audio/power)
- Output: HDMI female (video/audio) Signal input/output:
- Input Video signal: 0.5 - 1.0 V pp
- Input DDC signal: 5 V pp (TTL)
- Output video: HDMI, HDCP 1.3
- Frequency: 1.65 Gbps / 165 MHz Video resolutions:
- VGA: 640 x 480, 800x600, 1024x768, 1280x720, 1280x768, 1280x960, 1280x1024, 1920x1200, 1920x1080
- DTV/HDTV: 480i/480p/576i/576p/720p/1 080i/1080p@ 60Hz Physical details
- LEDs for power and connection
- VGA cable, 29 cm
- 5V / 1A USB power cable, 1 m
- Weight: 102 g
- Housing: Plastic Environmental conditions
- Operating temperature: (0 – 40°C)
- Storage temperature: - 20 – 60°C
- Humidity (non-condensing): 0 – 96% Scope of delivery
- VGA and USB to HDMI converter
- Quick guide Color: Black Product dimensions: 68 (L) x 89 (W) x 29 (H) [mm]
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | HDMI CE FCC |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1 m |
| Connector 1 | USB Type-A + VGA (D-Sub) |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Data transfer rate | 1.65 Gbit/s |
| Bandwidth | 165 MHz |
| Product colour | Black |
| HDCP | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Weight & dimensions | |
| Weight | 102 g |
| Width | 89 mm |
| Depth | 68 mm |
| Height | 29 mm |
Questions & answers
What is the delivery time of Manhattan 152426 VGA and USB to HDMI Converter Converts the analog signals VGA video and USB audio into a digital HDMI signal?
The article Manhattan 152426 VGA and USB to HDMI Converter Converts the analog signals VGA video and USB audio into a digital HDMI signal is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 152426 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 152426 VGA and USB to HDMI Converter Converts the analog signals VGA video and USB audio into a digital HDMI signal always at the best possible price. We can give you a discount of 2% on Manhattan 152426 VGA and USB to HDMI Converter Converts the analog signals VGA video and USB audio into a digital HDMI signal if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
