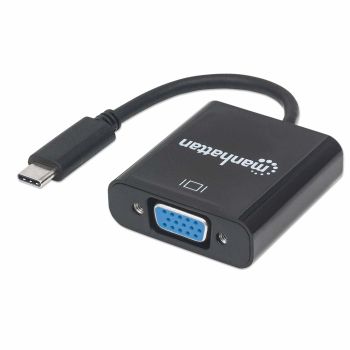

Manhattan 151771
USB-C to VGA converter USB 3.2 Gen 1, Type C male to VGA female, black
|
10,99 EUR 11,29 EUR |
|
|
( 13,08 EUR incl. VAT ) ≈ £9.20 | ≈ $12.30 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Lieske Part No.: | 897932 |
| Mfg Part No: | 151771 |
| UPC/EAN: | 766623151771 |
| Weight: | 0.024 kg |
Product information for Manhattan 151771:
The Manhattan USB-C to VGA converter enables the quick, easy and practical connection of a playback device with USB Type C -Port to monitors, televisions and projectors with VGA port. Ideal e.g. B. for modern Apple MacBooks that rely on USB Type C as the only interface. Thanks to Plug < Installation is child's play - neither driver configuration nor power supply is necessary. - Converts a USB-C video signal to a VGA display; Audio must be transmitted separately
- Experience high-definition (HD) images on a VGA monitor, projector or other display
- Supports video resolutions up to 1920x1080p@60Hz (Full HD)
- Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
- Plug < Play, does not require an external power supply
- Compatible with all devices with USB Type C support such as PCs, tablets and notebooks including Apple MacBook, Chromebook Pixel and more
- Fully shielded to reduce electromagnetic interference and other sources of interference
- Molded PVC connector jacket with strain relief
- 10 year guarantee Standards and certificates:
- USB 3.2 Gen 1
- CE
- FCC
- RoHS2
- WEEE connectors
- USB Type C, 24-pin. Connector
- VGA, 15-pin. Socket
- Shielded Supported video resolutions:
- VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200@60Hz Physical data
- AWG 32
- Mylar and aluminum shielding
- Plastic jacket
- Length 15 cm
- Weight: 31 g
- Shielded
- Housing: ABS plastic Ambient conditions
- Operating temperature: 0 ~ 50°C
- Storage temperature: -40 ~ 85°C
- Humidity (non-condensing): 0 - 96% System requirements:
- Windows XP/Vista/7/8/8.1/10 /11 or Linux or Mac 9.x/10.x or higher Scope of delivery
- USB-C to VGA converter Color: Black Product dimensions: 45 (L) x 43 (W) x 14.5 (H) [mm]
| Design | |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package type | Blister |
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of displays supported | 1 |
| Maximum resolution | 1920 x 1200 pixels |
| Certification | USB 3.1 CE FCC WEEE |
| DVI output | |
| HDMI output | |
| DisplayPort output | |
| VGA (D-Sub) output | |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 45 mm |
| Height | 14.5 mm |
| Weight | 23 g |
