Manhattan 151634

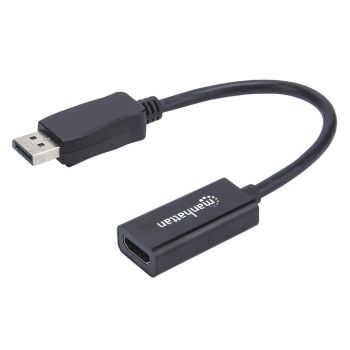

Passive DisplayPort to HDMI cable adapter DisplayPort male to HDMI female, 1080p@60Hz, black
|
8,57 EUR |
|
|
( 10,20 EUR incl. VAT ) ≈ £7.17 | ≈ $9.59 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1483818 |
| Mfg Part No: | 151634 |
| UPC/EAN: | 766623151634 |
| Weight: | 0.025 kg |
Product information for Manhattan 151634:
This Manhattan DisplayPort adapter enables the quick, easy and practical connection of playback devices with a DisplayPort output to monitors, televisions or projectors with an HDMI input . Full HD/1080p resolutions are transmitted losslessly and all without driver installation, power supply or configuration. - Converts a DisplayPort signal into an HDMI signal
- Supports Deep Color, applications with 10.8 Gbit/ s Bandwidth and resolutions up to 1080p (1920 x 1200)
- Delivers a high quality digital video signal - ideal for connecting a DisplayPort source to an HDMI display
- Passive adapter requires DP++ (Dual Mode) graphics card to renew the signal and to guarantee the best connection with HD displays and projectors
- Compact design simplifies cabling and prevents cable clutter; Snap closure ensures secure fixation
- Easy installation; Plug < Play
- 3 year warranty Standards and certificates:
- UL 20276
- DisplayPort v1.1
- FCC
- CE
- HDCP General
- Supports 8-bit and 10-bit Deep Color
- 10.8 Gbit/s bandwidth
- Maximum single -Link resolution: 1920 x 1200 (1080p@60Hz)
- Additional channel support: 1 Mbit/s
- Supports 1 lane, directional, 4 lines
- Passive connections
- 1 x DisplayPort 20-pin. Connector (with snap lock)
- 1 x HDMI 19-pin. Socket
- Gold plated contacts
- Molded PVC jacket Physical details
- Dimensions: 20 x 2.2 x 1.4 cm
- Cable length: 15 cm
- Weight: 14 g Environmental conditions
- Operating temperature: 0 - 40°C
- Storage temperature: -20 - 60 °C
- Humidity (non-condensing): 0 - 96% System requirements:
- Windows XP/Vista/7/8/8.1/10, Linux or Mac 9.x/10.x or higher Scope of delivery
- Passive DisplayPort to HDMI cable adapter Color: Black Product dimensions: 200 (L) x 22 (W) x 14 (H) [mm]
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | UL 20276 FCC CE HDCP |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.15 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | DisplayPort |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| DisplayPort version | 1.1 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package type | Polybag |
| Weight & dimensions | |
| Weight | 51 g |
| Width | 22 mm |
| Depth | 200 mm |
| Height | 14 mm |
Questions & answers
What is the delivery time of Manhattan 151634 Passive DisplayPort to HDMI cable adapter DisplayPort male to HDMI female, 1080p@60Hz, black?
The article Manhattan 151634 Passive DisplayPort to HDMI cable adapter DisplayPort male to HDMI female, 1080p@60Hz, black is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Manhattan 151634 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Manhattan 151634 Passive DisplayPort to HDMI cable adapter DisplayPort male to HDMI female, 1080p@60Hz, black always at the best possible price. We can give you a discount of 2% on Manhattan 151634 Passive DisplayPort to HDMI cable adapter DisplayPort male to HDMI female, 1080p@60Hz, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
