Protective grille on the suction side, yellow chromated, contact protection in accordance with DIN EN ISO 13857. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 levels, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Installation in any position possible. Direction of flow: The following illustration shows the direction of flow: Direction of flow A: Suction via the motor, standard. Direction of flow B: Blowing via the motor, on request. Direction of rotation, reversing operation: The volume flow is reduced by approx. 35% in abnormal direction of flow. Motor: Asynchronous motor. Speed controllable. Exception: Type EZQ 45/6 B, EZS 45/6 B, DZQ 40/2 B and DZS 40/2 B. Reversible. Exception: Fans with shaded pole motor (...-E). Not suitable for conveying air saturated with water vapor. Three-phase motor: DZQ and DZS series. Rated voltage 400 V, 50 Hz. Protection class
IP 55. Exception DZQ/DZS... D

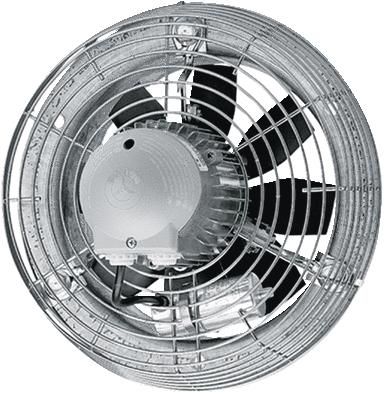

IP 55. Thermal overload protection as standard. Exception: Available on request for DZQ/DZS 25/4 D and pole-changing axial wall fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided on site. Pole-changing motors with speed ratios 8/4 or 4/2 are connected using the Dahlander principle. Electrical connection: On terminal block in the end cover of the motor. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZS 40/42 B, design: steel wall ring, delivery volume: 3270 m3/h / 6700 m3/h, delivery volumeNominal: 3270 m3/h / 6700 m3/h / in opt. efficiency, pressure pfs, nominal: 95 Pa - 350 Pa - in opt. efficiency, speed nNominal: 1480 1/min - 2920 1/min - in opt. Efficiency, speed: 1518 rpm / 2944 rpm, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 245 W / 1585 W / in opt. Efficiency, INom: 0.75 A / 2.6 A / in opt. Efficiency, IMax: 4.3 A, Protection class:
IP 55, Thermal class: F, Pole-changing: yes, Number of poles at high speed: 2, Number of poles at low speed: 4, Mains cable: 5 / 1.5 mm2, Installation location: wall / ceiling, Installation type: surface-mounted, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Weight: 22.25 kg, Nominal width: 400 mm, Width: 580 mm, Height: 580 mm, Depth: 345 mm, Conveyor temperature at nominal current: 60 °C, Conveyor temperature at IMax: -20 °C to 60 °C, Overall efficiency e: 41.1%, Measurement category: A, Efficiency category: static, Efficiency grade N: 46.2, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen,PBEP / Discharge volumeBEP / Pfs, BEP: 1.585 kW / 6700 m3/h / 350 Pa, nBEP: 2920 1/min, specific ratio: approx. 1, Information on dismantling and disposal: see assembly instructions, Information on installation, operation and maintenance: see assembly instructions, Items used in the efficiency measurement that are not described by the measurement category: -, Sound power levelLWA7: 78 dB(A) / 94 dB(A), Cover flap: without
Type:
DZS 40/42 B
Questions & answers
What is the delivery time of Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 ?
The article Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0094.0066 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 always at the best possible price. We can give you a discount of 2% on
Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 we can offer you a price of 2.567,84 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico 0094.0066 DZS 40/42 B Axial wall fan, steel wall ring DN400 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
