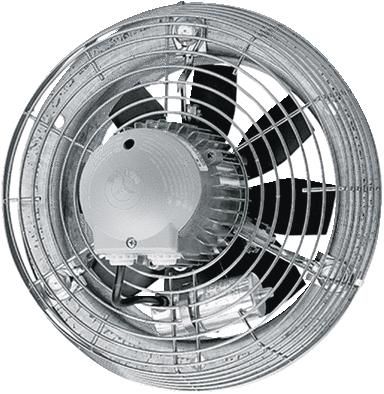

AC version: Axial wall fan with steel wall ring, in AC version. Brief description: For surface mounting. Protective grille on the suction side, contact protection in accordance with DIN EN ISO 13857. 8-blade impellers made of glass fiber reinforced polyamide. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High efficiency on the ventilation side, low operating noise. Increased durability thanks to high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Can be installed in any position for ventilation and exhaust ventilation. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction suction via motor. AC motor: EZQ/EZS series. Asynchronous motor. Not suitable for conveying air saturated with water vapor. Rated voltage 230 V, 50 Hz. Fans ... B: Capacitor motors with operating capacitor on the protective grille or on the wall sleeve, protection class
IP 55. Fans ... D: Capacitor motors with operating capacitor in the terminal box, protection class
IP 55. Fans ... E: Shaded pole motors, protection class
IP 55. Speed controllable. Exception for type EZQ 45/6 B. Devices can be continuously controlled with an optional speed controller or they can be switched in stages with an optional 5-stage transformer. Reversible. Exception for fans with shaded pole motor (... E). Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Thermal overload protection as standard. Electrical connection: On terminal block in the end cover of the motor. Safety instructions: The fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with Maico protective grille SG. Article: EZS 30/4 B, design: steel wall ring, flow rate: 1850 m3/h, speed: 1425 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 90 W, INom: 0.4 A, IMax: 0.55 A, protection class:
IP 55, thermal class: B, pole-changing: no, installation location: wall / ceiling, installation type: surface-mounted, installation position: horizontal / vertical, material: sheet steel, galvanized, color: silver, weight: 5.92 kg, weight with packaging: 7.59 kg, nominal width: 300 mm, width: 465 mm, height: 465 mm, depth: 250 mm, width with packaging: 480 mm, height with packaging: 480 mm, depth with packaging: 320 mm, conveying medium temperature at rated current: -20 °C to 60 °C, conveying medium temperature at IMax: -20 °C to 60 °C, closing flap: without
Type:
EZS 30/4 B
Questions & answers
What is the delivery time of Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003?
The article Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0094.0003 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003 always at the best possible price. We can give you a discount of 2% on
Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003 we can offer you a price of 1.082,54 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico EZS 30/4 B axial wall fan steel wall ring AC DN300 0094.0003 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
