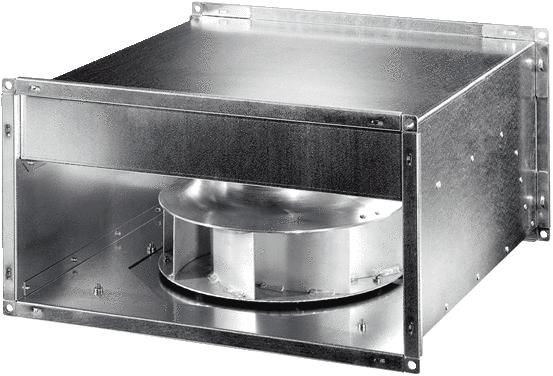

Installation in rectangular ventilation ducts. Galvanized housing. Low energy consumption thanks to EC technology. Small space requirement thanks to compact dimensions. Flange profiles on the suction and pressure side. Radial impellers with backward-curved blades made of galvanized steel (DN 22-DN 23) or UV-stabilized and glass fiber reinforced polypropylene (PP) (DN 50-DN 56). Impeller sits on the motor shaft and is driven directly. Statically and dynamically balanced in accordance with DIN ISO 21940-11, balance quality G6.3. Motor impeller can be swung out for cleaning purposes. High protection class
IP 54. Use elastic ELP connecting pieces to avoid vibrations being transmitted to the duct system. Direction of flow: The direction of flow and direction of rotation are marked by arrows on the fan housing. The direction of rotation is clockwise when viewed from the suction side. Motor: Motor designed for continuous operation. Robust EC motor with ball bearing, maintenance-free. Thermal motor protection as standard. Integrated motor protection via alarm relay. Speed can be continuously specified in control mode via a 0 - 10 V signal or a potentiometer. Status display via LED (DN 50-DN 56). ModBus RTU interface. Integrated 24 V power source for optional accessories. Installation instructions: Can be installed horizontally or vertically. Electrical connection: Depending on the version, this is made on the terminal box or on the cable. Mains frequency 50 Hz. Article: DPK 31 EC, delivery volume: 3500 m3/h, delivery volume nominal: 2100 m3/h / in opt. efficiency, pressure pfs, nominal: 328 Pa - in opt. efficiency, speed nnominal: 1500 1/min - in opt. Efficiency, speed: 1500 1/min, speed controllable: yes, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 349 W, INom: 1.6 A, protection class:
IP 54, thermal class: F, installation location: duct, installation position: any, housing material: galvanized sheet steel, weight: 31.84 kg, weight with packaging: 34.52 kg, fan can be swiveled out: yes, duct dimensions: 600 mm x 350 mm, width: 640 mm, height: 390 mm, depth: 700 mm, width with packaging: 665 mm, height with packaging: 470 mm, depth with packaging: 725 mm, conveying medium temperature: -20 °C to 50 °C
Type:
DPK 31 EC
Questions & answers
What is the delivery time of Maico DPK 31 EC duct fan duct 600x350 DS EC motor 0086.0802?
The article Maico DPK 31 EC duct fan duct 600x350 DS EC motor 0086.0802 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0086.0802 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico DPK 31 EC duct fan duct 600x350 DS EC motor 0086.0802 always at the best possible price. We can give you a discount of 2% on
Maico DPK 31 EC duct fan duct 600x350 DS EC motor 0086.0802 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico DPK 31 EC duct fan duct 600x350 DS EC motor 0086.0802 we can offer you a price of 2.753,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
