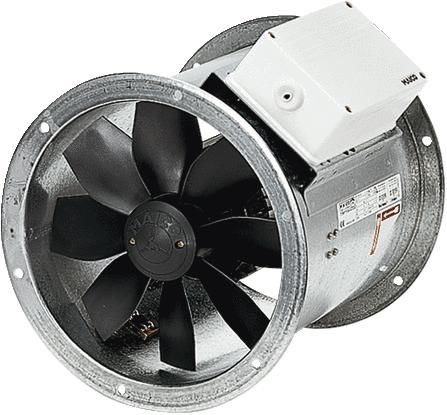

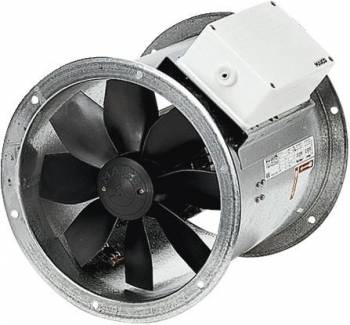

Maico 0086.0042 May DZR 30/84 B Axial duct fan, DZR 30/84 B content_copy

Three-phase version: Axial duct fan, in three-phase version. Brief description: Pipe sleeve made of galvanized sheet steel, with flange on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220: 1998. To avoid vibration transmission to the pipe system: Use elastic connecting pieces, feet and vibration dampers. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High ventilation-side efficiency, low operating noise. Increased durability through high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Can be installed in any position. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction suction via motor. Three-phase motor: DZR series. Asynchronous motor. Not suitable for conveying water vapor-saturated air. Rated voltage 400 V, 50 Hz. High protection class IP 55. Exception DZR ... D IP 55. Speed controllable. Exception for type DZR 40/2 B. Devices can be switched in stages using an optional 5-stage transformer. Reversible. Reversing operation: The volume flow is reduced by approx. 35% if the air flow direction is abnormal. Thermal overload protection as standard. Exception for type DZR 25/4 D and pole-changing axial tube fans available on request. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25-1, or the control circuit of a contactor. Pole-changing fans: ensure overload protection with a motor protection switch to be provided on site. Electrical connection: external terminal box with cable grommets. Safety instructions: The fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with Maico protective grille SG. Article: DZR 30/84 B, delivery volume: 900 m3/h / 1800 m3/h, speed: 715 1/min / 1425 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 40 W / 100 W, INom: 0.1 A / 0.3 A, IMax: 0.1 A / 0.3 A, protection class: IP 55, thermal class: B, pole-changing: yes, number of poles at high speed: 4, number of poles at low speed: 8, mains cable: 5 / 1.5 mm2, installation position: horizontal / vertical, Material: sheet steel, galvanized, Color: silver, Weight: 8.35 kg, Weight with packaging: 9.16 kg, Nominal width: 300 mm, Width: 380 mm, Height: 424 mm, Depth: 300 mm, Width with packaging: 420 mm, Height with packaging: 435 mm, Depth with packaging: 330 mm, Conveyor temperature at nominal current: 60 °C,Conveyor temperature at IMax: -20 °C to 60 °C, DC motor: false
Type: DZR 30/84 B
