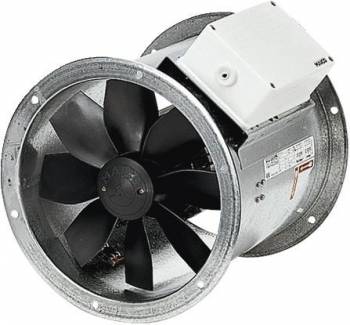

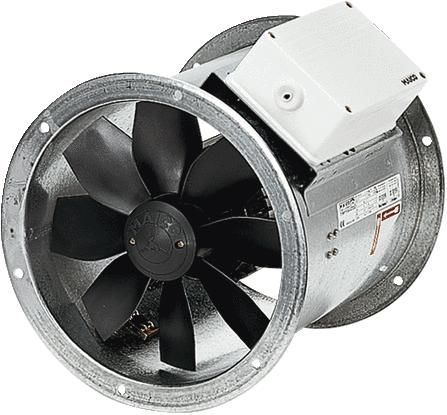

Three-phase version: Axial duct fan, in three-phase version. Brief description: Pipe sleeve made of galvanized sheet steel, with flange on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220: 1998. To avoid vibration transmission to the pipe system: Use elastic connecting pieces, feet and vibration dampers. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High ventilation-side efficiency, low operating noise. Increased durability through high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Can be installed in any position. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction suction via motor. Three-phase motor: DZR series. Asynchronous motor. Not suitable for conveying water vapor-saturated air. Rated voltage 400 V, 50 Hz. High protection class
IP 55. Exception DZR ... D
IP 55. Speed controllable. Exception for type DZR 40/2 B. Devices can be switched in stages using an optional 5-stage transformer. Reversible. Reversing operation: The volume flow is reduced by approx. 35% if the air flow direction is abnormal. Thermal overload protection as standard. Exception for type DZR 25/4 D and pole-changing axial tube fans available on request. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25-1, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided on site. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with a Maico protective grille SG. Article: DZR 45/4 B, delivery volume: 6720 m3/h, delivery volumeNominal: 4790 m3/h / in opt. efficiency, pressure pfs, nominal: 125 Pa - in opt. efficiency, speed nNominal: 1390 1/min - in opt. Efficiency, speed: 1431 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 460 W / in opt. efficiency, INom: 0.8 A / in opt. efficiency, IMax: 1 A, protection class:
IP 55, thermal class: B, pole-changing: no, mains cable: 7 / 1.5 mm2, installation position: horizontal / vertical, material: sheet steel, galvanized, color: silver, weight: 14.5 kg, weight with packaging: 16.27 kg, nominal width: 450 mm, width: 510 mm, height: 571 mm, depth: 310 mm, width with packaging: 575 mm, height with packaging: 590 mm,Depth with packaging: 340 mm, conveying medium temperature at rated current: 60 °C, conveying medium temperature at IMax: 60 °C, overall efficiency e: 55.4%, measuring category: D, efficiency category: total, efficiency level N: 64.2, VSD required: no, year of manufacture: see type plate, manufacturer name / official registration number / place of business of the manufacturer: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / conveying volumeBEP / Pfs, BEP: 0.46 kW / 5720 m3/h, nBEP: 1405 1/min, specific ratio: approx. 1, information on dismantling and disposal: see assembly instructions, information on installation, operation and maintenance: see assembly instructions, items used in the efficiency measurement that are not described by the measuring category: -, pf, BEP: 143 Pa, Sound power levelLWA5: 83 dB(A), DC motor: false
Type:
DZR 45/4 B
Questions & answers
What is the delivery time of Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55?
The article Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0086.0033 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55 always at the best possible price. We can give you a discount of 2% on
Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55 we can offer you a price of 1.752,86 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico 0086.0033 Axial duct fan DZR 45/4 B, 400V 50Hz 360W INom IMax 0.8 A 1.1 A IP55 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
