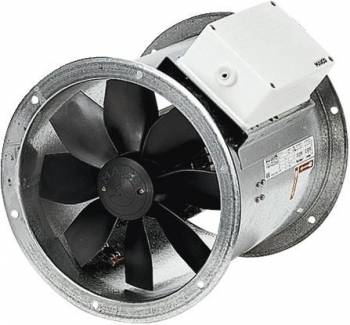

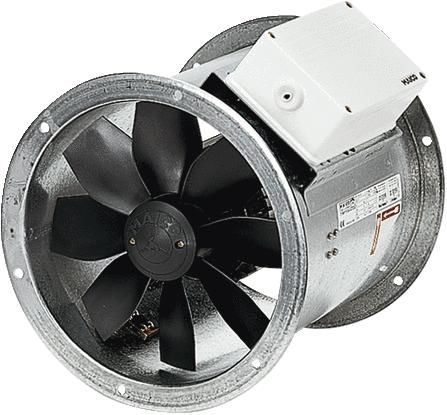

AC version: Axial duct fan, AC version. Brief description: Pipe sleeve made of galvanized sheet steel, with flange on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220: 1998. To avoid vibration transmission to the pipe system: Use elastic connecting pieces, feet and vibration dampers. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High ventilation-side efficiency, low operating noise. Increased durability through high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Reversible operation of the fans is possible. Customer-specific special voltages are available as special versions on request and for an additional charge. Installation in any position is possible. Direction of flow: The direction of flow is marked. Standard exhaust air operation, direction of flow sucking via motor. AC motor: Asynchronous motor. Not suitable for conveying air saturated with water vapor. Rated voltage 230 V, 50 Hz. High protection class
IP 55. Exception EZR/DZR... D
IP 55. Speed controllable. Devices can be continuously controlled with an optional speed controller or they can be switched in stages with an optional 5-stage transformer. Reversible. Reversing operation: The volume flow is reduced by approx. 35% if the direction of flow is abnormal. Capacitor motor with operating capacitor ready for connection in the terminal box. Thermal overload protection as standard. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MVE 10 (not suitable for EZR 25/4 D, EZR 30/6 B and EZR 35/6 B) or the control circuit of a contactor. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with a Maico protective grille SG. Article: EZR 45/4 B, delivery volume: 6670 m3/h, delivery volumeNominal: 4850 m3/h / in opt. efficiency, pressure pfs, nominal: 112 Pa - in opt. efficiency, speed nNominal: 1340 1/min - in opt. Efficiency, speed: 1419 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 445 W / in opt. efficiency, INom: 1.9 A / in opt. efficiency, IMax: 2.2 A, protection class:
IP 55, thermal class: B, pole-changing: no, installation position: horizontal / vertical, material: sheet steel, galvanized, color: silver, weight: 14.81 kg, weight with packaging: 16.51 kg, nominal width: 450 mm, width: 510 mm, height: 571 mm, depth:310 mm, width with packaging: 570 mm, height with packaging: 580 mm, depth with packaging: 311 mm, A: 458 mm, B: 310 mm, conveying medium temperature at rated current: 60 °C, conveying medium temperature at IMax: 60 °C, country of origin: Germany, overall efficiency e: 49.7%, measurement category: D, efficiency category: total, efficiency level N: 58.3, VSD required: no, year of manufacture: see type plate, manufacturer name / official registration number / place of establishment of the manufacturer: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / conveying volumeBEP / Pfs, BEP: 0.43 kW / 5490 m3/h, nBEP: 1370 1/min, specific ratio: approx. 1, information on dismantling and disposal: see Assembly instructions, Information on installation, operation and maintenance: see assembly instructions, Items used in the efficiency measurement that are not described by the measurement category: -, pf, BEP: 140 Pa, Sound power level LWA5: 85 dB(A), DC motor: false
Type:
EZR 45/4 B
Questions & answers
What is the delivery time of Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011?
The article Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0086.0011 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011 always at the best possible price. We can give you a discount of 2% on
Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011 we can offer you a price of 1.859,70 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico EZR 45/4 B axial pipe fan AC DN450 0086.0011 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
