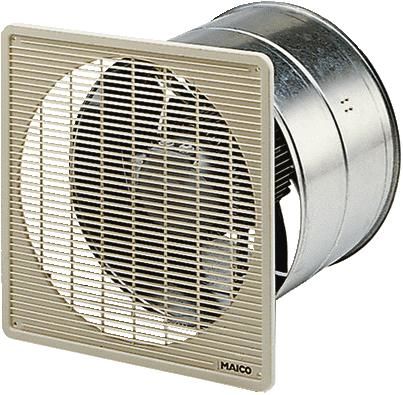

Three-phase version: Axial wall-mounted fan for flush-mounted installation, in three-phase version. Brief description: For flush-mounted installation. Installation possible in any position. Wall sleeve made of galvanized sheet steel. 8-blade impellers made of glass fiber reinforced polyamide. Plastic protective grille on the suction side, pearl white, contact protection in accordance with DIN EN ISO 13857. Thermal overload protection as standard. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High efficiency on the ventilation side, low operating noise. Increased durability thanks to high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction suction via motor. Three-phase motor: DZF series. Asynchronous motor. Rated voltage 400 V, 50 Hz. Protection class
IP 55. Exception: DZF ... D
IP 55. Speed controllable. Devices can be switched in stages using an optional 5-stage transformer. Reversible. Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Thermal overload protection as standard. Exception: DZF ... D. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25-1, or the control circuit of a contactor. Not suitable for conveying air saturated with water vapor. Electrical connection: On terminal block in the end cover of the motor. Safety instructions: With free intake, the fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZF 45/4 B, design: wall sleeve, delivery volume: 6045 m3/h, delivery volumeNominal: 3970 m3/h / in opt. efficiency, pressure pfs, nominal: 116 Pa - in opt. efficiency, speed nNominal: 1380 1/min - in opt. efficiency, speed: 1407 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 455 W / in opt. efficiency, INom: 0.8 A / in opt. Efficiency, IMax: 1.1 A, Protection class:
IP 55, Thermal class: B, Mains cable: 7 / 1.5 mm2, Installation location: wall / ceiling, Installation type: flush-mounted, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Color: silver, Weight: 14.41 kg, Weight with packaging: 16.54 kg, Nominal width: 450 mm, Width: 580 mm, Height: 580 mm, Depth: 315 mm, Width with packaging: 595 mm, Height with packaging: 595 mm, Depth with packaging: 365 mm, Conveyor temperature at rated current: 80 °C, Conveyor temperature at IMax: -20 °C to 60 °C, Overall efficiency e: 32.1%, Measurement category: A, Efficiency category: static, Efficiency grade N: 40.6, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official Registration number / place of business of the manufacturer: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg,HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0.45 kW / 4160 m3/h / 125 Pa, nBEP: 1385 1/min, specific ratio: approx. 1, information on dismantling and disposal: see assembly instructions, information on installation, operation and maintenance: see assembly instructions, items used in the efficiency measurement that are not described by the measurement category: determination of energy efficiency without protective grille. Sound power levelLWA7: 85 dB(A), closure flap: without
Type:
DZF 45/4 B
Questions & answers
What is the delivery time of Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B?
The article Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0085.0109 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B always at the best possible price. We can give you a discount of 2% on
Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B we can offer you a price of 1.689,52 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico 0085.0109 May DZF 45/4 B Axial Wandeinbauventilato, DZF 45/4 B via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
