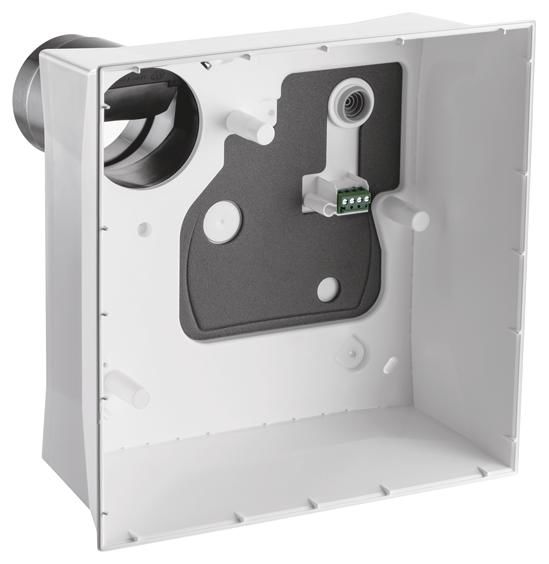

Version without fire protection: Surface-mounted housing with plastic discharge nozzle DN 75/80 with automatic plastic non-return valve. Automatic plastic non-return valve with simultaneous function as a cold smoke barrier. Special properties: For applications in accordance with DIN 18017-3. Surface-mounted housing for accommodating the ER EC fan insert in combination with the covers of the ER-A... series. Installation in bathrooms, toilets and apartment kitchens. Wall or ceiling mounting possible. Housing can be rotated, allowing the discharge nozzle to be connected to the main line at the top left or top right. Electrical connection at the rear. Simple electrical wiring on a practical pin strip terminal. Connection diameter DN 75/80. Plastic parts normally flammable in accordance with DIN 4102-1 Class B 2 (in accordance with EN 13501-1). Color traffic white similar to RAL 9016. Easy installation. Approval notices on request or on our homepage www.maico-ventilatoren.com.Article: ER GH AP, Design: without fire protection, Air direction: ventilation, Voltage type: alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Protection class: IP X5, Mains cable: 3/5 x 1.5 mm2, Installation location: wall / ceiling, Installation type: surface-mounted, Housing material: ABS plastic, Color: traffic white, similar to RAL 9016, Weight: 0.62 kg, Weight with packaging: 0.85 kg, Fire protection: no, Blow-out direction: rear, Connection diameter: 75 mm / 80 mm, Width: 276 mm, Height: 276 mm, Depth: 180 mm, Width with packaging: 350 mm, Height with packaging: 140 mm, Depth with packaging: 290 mm
Type: ER GH AP
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Maico ER GH AP AP plaster housing with plastic connector 0084.0352?
The article Maico ER GH AP AP plaster housing with plastic connector 0084.0352 is currently
in stock
According to our experience the article is ready for dispatch within 5 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0084.0352 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico ER GH AP AP plaster housing with plastic connector 0084.0352 always at the best possible price. We can give you a discount of 2% on
Maico ER GH AP AP plaster housing with plastic connector 0084.0352 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Maico ER GH AP AP plaster housing with plastic connector 0084.0352 we can offer you a price of 80,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
