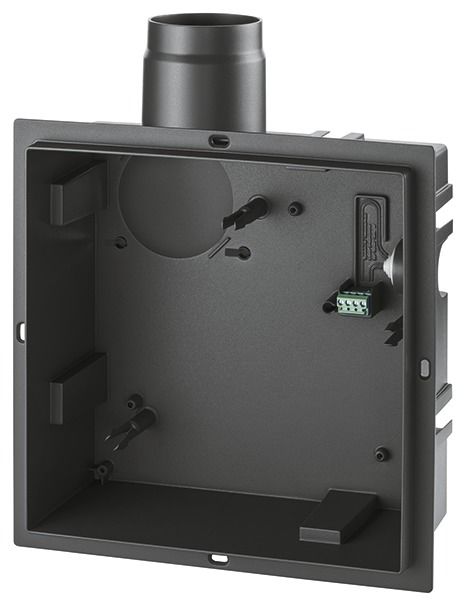

Special features: Exhaust nozzle can be converted from side to back without tools. Side mounting grooves for mounting with mounting brackets or in pre-wall installations. Automatic plastic non-return valve that also functions as a cold smoke barrier. For applications in accordance with DIN 18017-3. Single-room ventilation: Installation in bathrooms, toilets and apartment kitchens. Installation inside and outside the shaft in the wall and ceiling is possible. Low installation depth of the flush-mounted housing and cover. 6 side-mounted mounting grooves enable easy installation. All-round frame enables further fastening options. Flexible cable entry enables electrical connection from the side or from the back. Simple electrical wiring on a practical pin strip terminal. With plaster protection cover to close the housing during the shell construction phase. Plastic exhaust nozzle that can be converted without tools with automatic plastic non-return valve for side (top, left, right) and rear blow-out direction. Connection diameter DN 75/80. Predetermined breaking point for second room connection or WC connection piece included as standard in the ER GH housing. General building approval, approval number: Z-51.1-38. Approval notices on request or on our homepage www.maico-ventilatoren.com. Plastic parts normally flammable according to DIN 4102-1 Class B 2 (according to EN 13501-1). Optional accessories: Extractor nozzle ER-AS for toilet seat ventilation, second room connection ER-ZR, mounting set ER-MS, mounting bracket ER-UPMArticle: ER GH, design: plastic exhaust nozzle
convertible to side/rear with automatic plastic non-return flap, without fire protection housing, second room connection right/left/bottom possible, air direction: ventilation, installation location: wall / ceiling, installation type: flush-mounted, housing material: plastic, color: black, weight: 0.59 kg, weight with packaging: 0.89 kg, fire protection: no, exhaust direction: side / rear, connection diameter: 75 mm / 80 mm, width: 250 mm, height: 250 mm, depth: 110 mm, width with packaging: 350 mm, height with packaging: 290 mm, depth with packaging: 130 mm, approval number: Z-51.1-478
Type:
ER GH
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Maico ER GH UP housing for ER EC 0084.0350?
The article Maico ER GH UP housing for ER EC 0084.0350 is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0084.0350 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico ER GH UP housing for ER EC 0084.0350 always at the best possible price. We can give you a discount of 2% on
Maico ER GH UP housing for ER EC 0084.0350 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Maico ER GH UP housing for ER EC 0084.0350 we can offer you a price of 82,65 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
