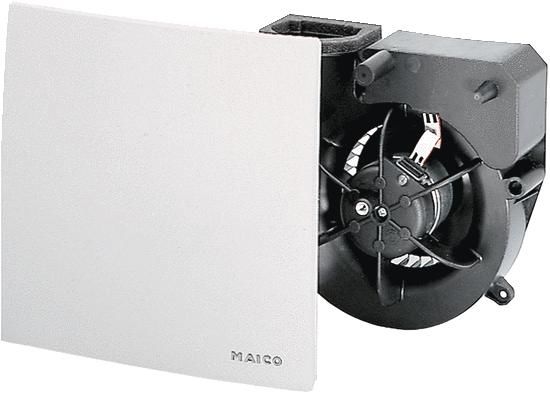

Maico 0084.0129 ER 100 RC Fan insert, Radio-controlled 35,60,100m3 / h

Version with radio receiver: On/off via radio switch DS RC or separate control RLS RC. Run-on time approx. 15 min only when switching off in individual operation with radio switch and deactivated DIN 18017-3 mode. The three speeds can be selected either on the radio switch or the control. Speed cannot be controlled. Can be combined with Wibutler Smart Home System. Radio-controlled fan with cover and filter for the MAICOsmart exhaust air system, with ISO Coarse 30% (G2) filter and built-in radio receiver 868 MHz, based on EnOcean technology, for installation in flush-mounted housing. The fan can be installed in a master-slave network (RLS RC required). For one-room or two-room ventilation with a single fan. Three power levels 35 / 60 / 100 m3/h. Easy filter change without tools. Cover can be rotated by +- 5°, thus compensation is possible if the housing is installed crooked. Simple and quick installation of the fan in the housing using the snap fastener and the electrical plug connection. Color traffic white similar to RAL 9016. All MAICO ER devices correspond to protection class IP X5 and can therefore be installed in area 1 according to DIN VDE 0100-701, even with water jets. Protection class II. The extremely steep characteristic curve shows the high pressure capacity of the ER fans. Robust energy-saving capacitor motor. Motor with thermal overload protection. Maintenance-free, with ball bearings closed on both sides. Volume flow characteristic curve and leakage air rate tested by TÜV Bayern eV Leakage air volume flow < 0.01 m3/h. Shaft level difference according to DIN 52210-6, tested by IAB Oberursel. With VDE mark. Motor: Energy-saving, robust capacitor motor with ball bearings, maintenance-free. Suitable for continuous operation. Safety note: The fan corresponds to protection class IP X5 and can therefore be installed in protection area 1 according to DIN VDE 0100-701, even with water jets. For details, see the planning information chapter Single-pipe ventilation according to DIN 18017-3. Article: ER 100 RC, Design: Radio receiver, Delivery volume: 35 m3/h / 60 m3/h / 100 m3/h, Speed: 850 1/min / 1250 1/min / 1900 1/min, Air direction: Extract air, Speed controllable: no, SEC average: -6.72 kWh/(m2*a), Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Power consumption: 10 W / 21 W / 29.5 W, IMax: 0.1 A / 0.12 A / 0.14 A, Protection class: IP X5, Mains cable: 3 / 1.5 mm2, Installation location: Wall / ceiling, Installation type: Flush-mounted, Installation position: vertical / horizontal, System type: decentralized, Material: Plastic, color: traffic white, similar to RAL 9016, weight: 1.5 kg, weight with packaging: 1.8 kg, filter class: ISO Coarse 30% (G2), width: 250 mm, height: 250 mm, depth: 138 mm, width with packaging: 280 mm, height with packaging: 280 mm, depth with packaging: 150 mm, conveying medium temperature at IMax: 40 °C, ambient temperature: -10 °C to 40 °C, sound pressure level:27 dB(A) / 36 dB(A) / 45 dB(A) / Specification according to DIN 18017-3 with an equivalent absorption area AL = 10 m2, nominal width: 75 mm / 80 mm
Type: ER 100 RC
