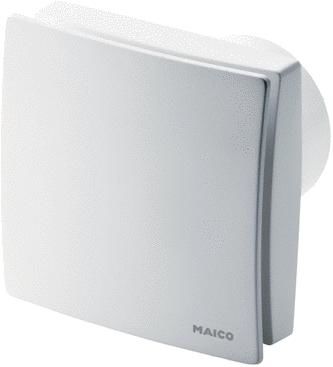

Maico 0084.0096 ECA 150 ipro KB Kleinraum-, fan movement DN150

Version with motion detector: Barrier-free product, as automatic switching on/off via motion sensor. All 4 operating programs can be selected. The order of the power levels depends on the selected operating program. Operation without a switch is possible, optionally also switchable via a separate switch. No switch-on delay. Run-on time can be set in stages using easily accessible buttons: 0/8/17/25 min. The set time is displayed using LEDs during setting. Range of the motion detector: 5 m. Horizontal detection range of the motion detector: 100°. Vertical detection range of the motion detector: 82°. Concealed suction, with electrically operated internal lock. Not speed-controlled. Operating programs, adjustable via jumper in the device. Comfort program (preset), user present: level 1, run-on time: level 2, demand program, user present: level 2, run-on time: level 1, economy program, user present: level 1, run-on time: level 1, power program, user present: level 2, run-on time: level 2, Intelligently programmed small room fan for the highest demands. 2 power levels. Concealed intake thanks to designer cover. For ventilation. Combines large air flow volume with high pressure. With VDE-GS mark. Protection class IP X5 for safety in the bathroom. Protection class II. Thermal overload protection. Suitable for continuous operation. Color traffic white, similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Energy-saving, robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Installation instructions: Compatible with ECA predecessor models DN 150, as mounting holes and flush-mounted cable entry are in the same place. Wall and ceiling mounting possible. Electrical connection: Electrical connection can be either surface-mounted or flush-mounted. Safety instructions: All ECA 150 ipro devices can be used in protection area 1 according to DIN VDE 0100-701. For details see planning information. Article: ECA 150 ipro KB, Design: motion detector, Delivery volume: 200 m3/h / 250 m3/h, Speed: 1672 1/min / 2189 1/min, Speed controllable: no, Reversibility: no, SEC average: -24.05 kWh/(m2*a), Voltage type: alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Nominal power: 18 W / 22 W, IMax: 0.11 A, Protection class: IP X5, Mains cable: 3/5 x 1.5 mm2, Installation location: ceiling / wall, Installation type: surface-mounted, Installation position: any, Material: plastic, Color: traffic white, similar to RAL 9016, Weight: 1.5 kg, Weight with packaging: 1.77 kg, Flap: integrated, Flap type: electric, Nominal width: 150 mm, Width: 228 mm, height: 228 mm, depth: 123.3 mm, width with packaging: 235 mm, height with packaging: 235 mm, depth with packaging: 200 mm, conveying medium temperature at IMax: 40 °C, run-on time: 0 min / 8 min / 17 min / 25 min, sound pressure level: 33 dB(A) / 40 dB(A) / distance 3 m, free field conditions
Type: ECA 150 ipro KB
