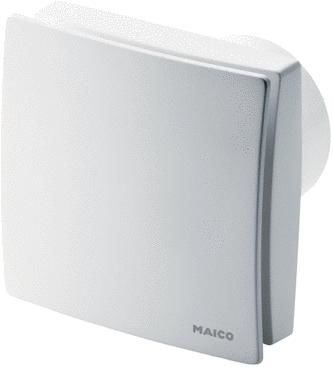

Maico 0084.0095 ECA 150 ipro KH Kleinraum-, Fan humidity DN150

Version with automatic humidity control: Barrier-free product, as automatic switching on/off via humidity sensor. No setting of switch-on humidity necessary. Fan monitors the room humidity. Automatically ventilates depending on room humidity in levels 1 and 2. Operation without switch possible, optionally also switchable via separate switch. Switch-on delay can be set in stages using easily accessible buttons (only when controlled via switch): 0/50/90/120 sec. Run-on time can be set in stages using easily accessible buttons: 8/17/25 min. Run-on time 0 min can only be set for control via separate switch. Set time is displayed via LEDs during setting. Concealed intake, with electrically operated internal lock. Speed cannot be controlled. Operating programs, adjustable via jumper in the device. Comfort program (preset), user present: level 1, run-on time: level 2, demand program, user present: level 2, run-on time: level 1, economy program, user present: level 1, run-on time: level 1, power program, user present: level 2, run-on time: level 2, Intelligently programmed small room fan for the highest demands. 2 power levels. Concealed intake thanks to designer cover. For ventilation. Combines large air flow volume with high pressure. With VDE-GS mark. Protection class IP X5 for safety in the bathroom. Protection class II. Thermal overload protection. Suitable for continuous operation. Color traffic white, similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Energy-saving, robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Installation instructions: Compatible with ECA predecessor models DN 150, as mounting holes and flush-mounted cable entry are in the same place. Wall and ceiling mounting possible. Electrical connection: Electrical connection can be either surface-mounted or flush-mounted. Safety instructions: All ECA 150 ipro devices can be used in protection area 1 according to DIN VDE 0100-701. For details see planning information. Article: ECA 150 ipro KH, Design: Humidity control, Delivery volume: 200 m3/h / 250 m3/h, Speed: 1672 1/min / 2189 1/min, Speed controllable: no, Reversibility: no, SEC average: -24.05 kWh/(m2*a), Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Nominal power: 18 W / 22 W, IMax: 0.11 A, Protection class: IP X5, Mains cable: 3/5 x 1.5 mm2, Installation location: Ceiling / wall, Installation type: Surface-mounted, Installation position: Any, Material: Plastic, Color: traffic white, similar to RAL 9016, Weight: 1.5 kg, Weight with packaging: 1.77 kg, Flap: integrated, Flap type: electric, Nominal width: 150 mm, width: 228 mm, height: 228 mm, depth: 123.3 mm, width with packaging: 235 mm, height with packaging: 235 mm, depth with packaging: 200 mm, conveying medium temperature at IMax: 40 °C, run-on time: 8 min / 17 min / 25 min / run-on time 0 min. available when using an optional switch (e.g. light switch), switch-on delay:0 s / 50 s / 90 s / 120 s / Switch-on delay available when using an optional switch (e.g. light switch), sound pressure level: 33 dB(A) / 40 dB(A) / distance 3 m, free field conditions
Type: ECA 150 ipro KH
