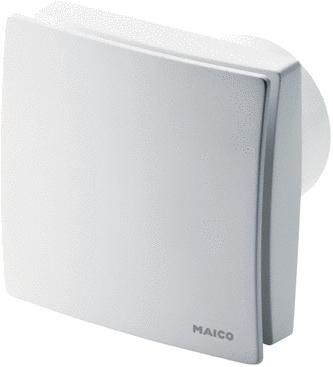

Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro
|
369,55 EUR 385,11 EUR |
|||||||||||
|
( 439,76 EUR incl. VAT ) ≈ £317.07 | ≈ $428.31 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 397072 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 0084.0085 | ||||||||||
| UPC/EAN: | 4012799840855 | ||||||||||
| Weight: | 1.885 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Maico 0084.0085:
Standard version: On/off via light switch or separate switch. Operation either in level 1 or level 2. Can be operated in two stages using a standard double changeover switch. Speed controllable. Intelligently programmed small room fan for the highest demands. 2 power levels. Concealed intake thanks to designer cover. For ventilation. Combines large flow volume with high pressure. With VDE-GS mark. Protection class IP X5 for safety in the bathroom. Protection class II. Thermal overload protection. Suitable for continuous operation. Color traffic white, similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Energy-saving, robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Installation instructions: Compatible with ECA predecessor models DN 150, as mounting holes and flush-mounted cable entry are in the same place. Wall and ceiling mounting possible. Electrical connection: Electrical connection can be either surface-mounted or flush-mounted. Safety instructions: All ECA 150 ipro devices can be used in protection area 1 according to DIN VDE 0100-701. For details see planning information. Article: ECA 150 ipro, Version: standard version, Delivery volume: 200 m3/h / 250 m3/h, Speed: 1672 1/min / 2189 1/min, Speed controllable: yes, Reversibility: no, SEC average: -11.18 kWh/(m2*a), Voltage type: alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Nominal power: 15 W / 19 W, IMax: 0.09 A, Protection class: IP X5, Mains cable: 3/5 x 1.5 mm2, Installation location: ceiling / wall, Installation type: surface-mounted, Installation position: any, Material: plastic, Color: traffic white, similar to RAL 9016, Weight: 1.6 kg, Weight with packaging: 1.89 kg, Flap: none, Nominal width: 150 mm, Width: 228 mm, height: 228 mm, depth: 123.3 mm, width with packaging: 235 mm, height with packaging: 235 mm, depth with packaging: 200 mm, conveying medium temperature at IMax: 40 °C, sound pressure level: 33 dB(A) / 40 dB(A) / distance 3 m, free field conditions
Type: ECA 150 ipro
Type: ECA 150 ipro
Questions & answers
What is the delivery time of Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro ?
The article Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Maico 0084.0085 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro always at the best possible price. We can give you a discount of 2% on Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Maico 0084.0085 May ECA 150 ipro small room fan, ECA 150 ipro we can offer you a price of 361,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
