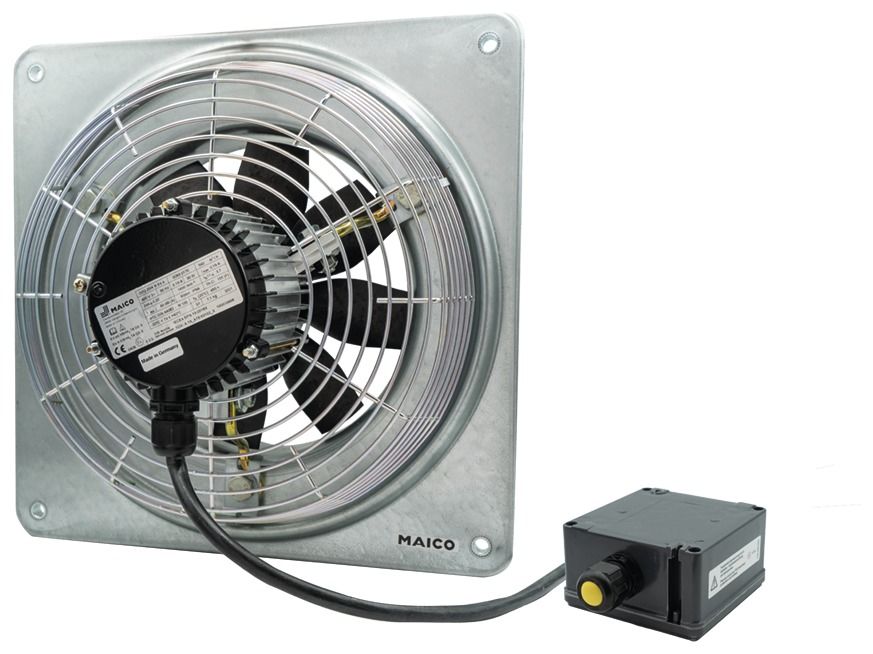

Product design: Three-phase motor, Ex II 2G Ex eb IIB+H2 T3/T4 Gb X / Ex II 2G Ex h IIB+H2 T3/T4 Gb X. For operating temperatures of -20 °C <= Ta <= +60 °C. Can be switched for ventilation or exhaust. Special properties: Axial wall fan, explosion-proof, medium gas. Explosion protection and approvals according to
ATEX and IECEx. For all gases and vapors of Ex group IIA and IIB and additionally qualified for hydrogen. MAICO Ex fans meet the safety requirements of the European Directive RL 2014/34/EU for equipment and protective systems in potentially explosive areas. For zones 1 and 2. Ignition protection types: e - increased safety and c - structural safety. Protection class
IP 64. Protective grille on the suction side, contact protection according to DIN EN ISO 13857. Can be installed in any position. Type series: EZQ / DZQ .. Ex e with square wall plate. EZS / DZS .. Ex e with steel wall ring. Impeller: Axial impeller made of conductive plastic. Balance quality of the motor-impeller combination G 6.3 according to category BV-3 in accordance with ISO 14694. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction suction via motor. Three-phase motor: Robust three-phase motor with ball bearing, maintenance-free. Reversible. Reversible operation: The volume flow is reduced by approx. 35% if the air flow direction is abnormal. Operating mode S1 (continuous operation). Speed control with transformer TR... possible. Exception: DZ.. 35/2 B Ex... The temperature in the fan motor is monitored by PTC thermistors. The PTC thermistors must be connected to a release system (safety device according to Directive 2014/34/EU) that permanently disconnects the fan from the power supply if the temperature is too high. The MAICO PTC thermistor tripping system MVS 6 or TMS is recommended as the tripping system. Electrical connection: EZ .. Ex ..: connecting cable approx. 0.5 m long. DZ .. Ex ..: connecting cable approx. 1.7 m long. Separate terminal box, explosion-proof, with cable gland.Article: DZQ 35/2 B Ex e, design: square wall plate, delivery volume: 5460 m3/h, speed: 2900 1/min, impeller type: axial, speed controllable: no, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 580 W, cosphi: 0.64, INom: 1.3 A, Imax at UNom: 1.96 A, protection class:
IP 64, thermal class: F, installation location: wall / ceiling, installation type: surface-mounted, installation position: vertical / horizontal, material: sheet steel, galvanized, housing material: sheet steel, galvanized, color: galvanized, weight: 13.74 kg, weight with packaging: 15.67 kg, nominal width: 350 mm, width: 525 mm, height: 525 mm, depth: 288.5 mm, width with packaging: 540 mm, height with packaging: 540 mm, depth with packaging: 335 mm, EX designation according to
ATEX directive: Ex II 2 G, EX designation according to standard: Ex eb IIB + H2 T3 Gb / Ex h IIB + H2 T3 Gb, Ta ambient temperature: -20 °C <= Ta <= +60 °C, IA/IN: 6.9, time tA: 35 sec, operating mode: S1, PTC DIN 44082: M 100, EC type examination certificate: TÜV-A 19
ATEX0102 X, IECEx EPS 19.0018X, Temperature class: T3, Thermal class of insulating materials Th. Cl.: 155 (F)
Type:
DZQ 35/2 B E Ex e
Questions & answers
What is the delivery time of Maico 0083.0179 DZQ 35/2 BE Ex e Axial wall, fan wall plate DN350 ?
The article Maico 0083.0179 DZQ 35/2 BE Ex e Axial wall, fan wall plate DN350 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0083.0179 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0083.0179 DZQ 35/2 BE Ex e Axial wall, fan wall plate DN350 always at the best possible price. We can give you a discount of 2% on
Maico 0083.0179 DZQ 35/2 BE Ex e Axial wall, fan wall plate DN350 if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Maico 0083.0179 DZQ 35/2 BE Ex e Axial wall, fan wall plate DN350 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
