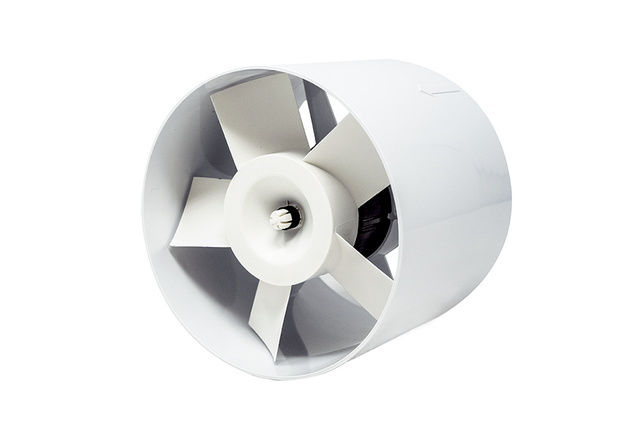

Standard version: On/off via light switch or separate switch. Speed controllable. 1-speed small room fan for ventilating the exhaust air rooms. Suitable for continuous operation. Standard version: Speed controllable. TC version: with adjustable run-on time 3...25min. Protection class IP X2 in horizontal position. Protection class IP X0 in vertical position. Protection class II. Color traffic white similar to RAL 9016. Housing made of impact-resistant plastic. Motor: Suitable for continuous operation. Installation instructions: Wall and ceiling installation possible. Installation primarily intended in the WH120 / WH150. Electrical connection: Electrical connection flush-mounted. Article: ERV 150, Delivery volume: 366 m3/h, Speed: 2440 1/min, Air direction: Ventilation, Speed controllable: yes, Reversibility: no, Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Nominal power: 38 W, IMax: 0.27 A, Protection class: IP X2, Pole-switchable: no, Mains cable: 3 x 1.5 mm2, Installation location: Wall / ceiling, Installation location: Extract air room, Installation type: Pipe, Material: Plastic, Color: traffic white, similar to RAL 9016, Weight: 0.8 kg, Weight with packaging: 1 kg, Nominal width: 151 mm, Suitable for nominal width: 151 mm, Width: 151 mm, Height: 151 mm, Depth: 125 mm, Width with packaging: 160 mm, Height with Packaging: 160 mm, depth with packaging: 130 mm, conveying medium temperature at IMax: 40 °C, Ta ambient temperature: -20 °C <= Ta <= +40 °C, sound pressure level: 43 dB(A) / distance 3 m, free field conditions
Type: ERV 150
Questions & answers
What is the delivery time of Maico ERV 150 pipe insertion fan DN150 0080.0986?
The article Maico ERV 150 pipe insertion fan DN150 0080.0986 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0080.0986 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico ERV 150 pipe insertion fan DN150 0080.0986 always at the best possible price. We can give you a discount of 2% on
Maico ERV 150 pipe insertion fan DN150 0080.0986 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Maico ERV 150 pipe insertion fan DN150 0080.0986 we can offer you a price of 181,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
