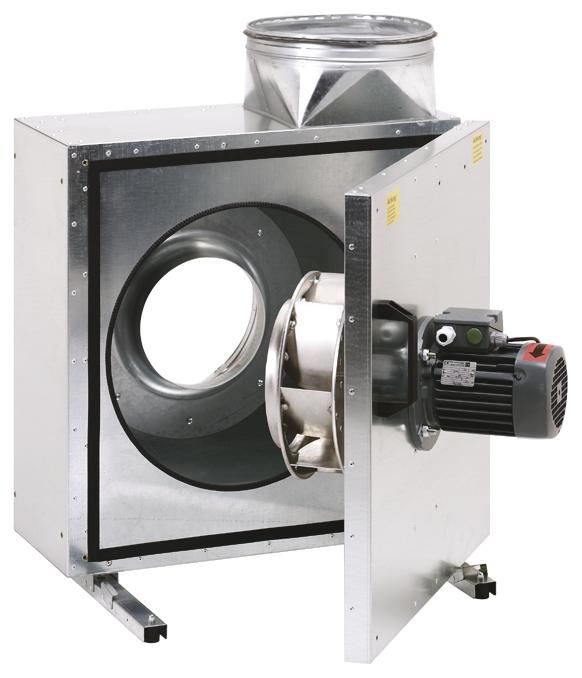

The series was specially developed for the tough operating conditions of a kitchen exhaust fan. Double-walled housing made of galvanized sheet steel for high demands on particularly low noise levels. Conveys medium to large air volumes with high resistance. Insensitive to hot conveying media up to 120° C. Connection nozzles on the suction and pressure side, for direct installation in ventilation ducts, with double sealing lips. With mounting rail and 4 vibration dampers. Fan unit can be swung out for cleaning and maintenance. Motor positioned outside the air flow. With condensate drain when the outlet nozzle points upwards. High-pressure radial impellers with backward-curved blades. Motor: Motor can be controlled by means of voltage reduction using transformers. Thermal contacts are connected to terminals. Full motor protection by external trigger device of type MAICO MVE 10. Protection class IP X4 with closed housing cover and suction and pressure side pipe connection. Speed controllable. Installation instructions: Installation with outlet nozzle pointing upwards, right or left. When installed with the exhaust nozzle pointing to the right or left, the inspection door must be converted on site. Electrical connection: External terminal box with cable gland. Safety instructions: Only operate the fan with free intake or exhaust if the impeller is protected against contact in accordance with DIN EN ISO 13857. To do this, attach a protective grille. Article: EKR 31-2, delivery volume: 3400 m3/h, delivery volumeNominal: 1934 m3/h / in opt. efficiency, pressure pfs, nominal: 716 Pa - in opt. efficiency, speed nNominal: 2723 1/min - in opt. efficiency, speed: 2890 1/min, speed controllable: yes, type of voltage: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 722 W / in opt. Efficiency, INom: 3.2 A / im opt. Efficiency, IMax: 4.1 A, Protection class: IP X4, Thermal class: F, Mains cable: 5 / 1.5 mm2, Installation position: vertical / horizontal, Material: sheet steel, galvanized, Housing material: sheet steel, galvanized, Color: silver, Weight: 40.89 kg, Weight with packaging: 51 kg, Fan can be swiveled out: yes, Nominal width: 315 mm, Width: 692 mm, Height: 692 mm, Depth: 568 mm, Width with packaging: 740 mm, Height with packaging: 700 mm, Depth with packaging: 780 mm, Conveyor temperature at IMax: -20 °C to 120 °C, Ambient temperature: 80 °C, Overall efficiency e: 50.8%, Measurement category: A, Efficiency category: static, Efficiency grade N: 62.9, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official Registration number / place of business of the manufacturer: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0.709 kW / 1934 m3/h / 716 Pa, nBEP: 2723 1/min, specific ratio: approx. 1, Information on dismantling and disposal: see assembly instructions, Information on installation, operation and maintenance: see assembly instructions,Items used in the efficiency measurement that are not described by the measurement category: -, IBEP: 3.1 A, Sound power level LWA5: 80 dB(A), DC motor: false
Type: EKR 31-2
Questions & answers
What is the delivery time of Maico 0080.0884 EKR 31-2 Sound-insulated ventilation, AC new model DN315 ?
The article Maico 0080.0884 EKR 31-2 Sound-insulated ventilation, AC new model DN315 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0080.0884 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0080.0884 EKR 31-2 Sound-insulated ventilation, AC new model DN315 always at the best possible price. We can give you a discount of 2% on
Maico 0080.0884 EKR 31-2 Sound-insulated ventilation, AC new model DN315 if you choose payment in advance on ordering.
You can also send us a price proposal for your desired quantity of Maico 0080.0884 EKR 31-2 Sound-insulated ventilation, AC new model DN315 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
